Fuse detailsIntroduction
INTRODUCTION
The fuses are mounted in two fuse boxes; one is in the engine compartment and the other in the passenger compartment, high in the driver's footwell. In addition, the front fog lamp relay receives battery voltage via a 15A fuse (stand-alone fuse holder) mounted at the rear RH side of the engine compartment.
The engine compartment fuse box contains high current pull-out fuses which feed multiple circuits.

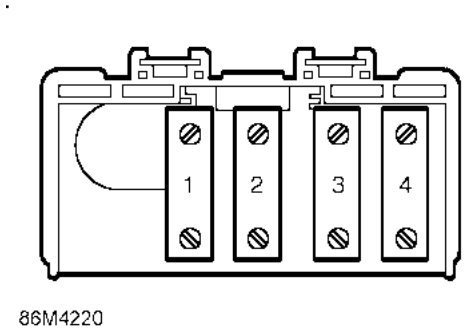

The fuses in the passenger compartment fuse box are all of the smaller pull-out type. Engine Compartment Fuse Box
| Link | Rating | Wire Colour | Function |
|---|---|---|---|
| 1 | 30 amp | N | Passenger compartment fuse box - fuses A9, B1, B6, B9 and C4 |
| 2 | 30 amp | N | Ignition switch, auxiliary relay |
| 3 | 30 amp | N | Lighting switch |
| 4 | 30 amp | N | MEMS relay module / manifold heater relay (Japan) |
