Fuel delivery systemFuel system - pressure test

FUEL SYSTEM - PRESSURE TEST

Service repair no - 19.50.13

Remove

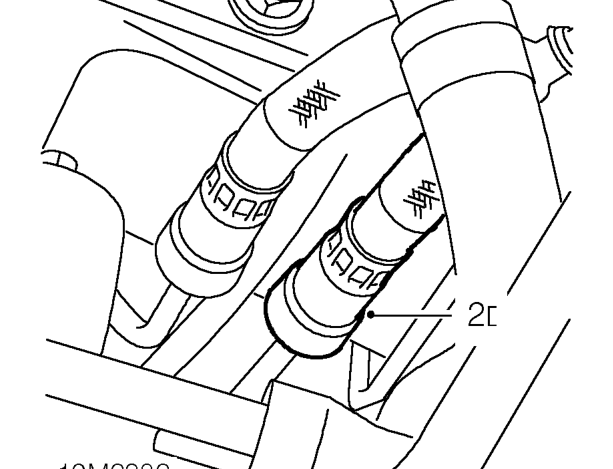

  1. Position absorbent clotch around fuel line quick fit connector.
Fuel system - pressure test – Position absorbent clotch around fuel line quick fit connector.
  1. Release quick fit connector and disconnect fuel feed hose from fuel pipe.
Fuel system - pressure test – Release quick fit connector and disconnect fuel feed hose from fuel pipe.

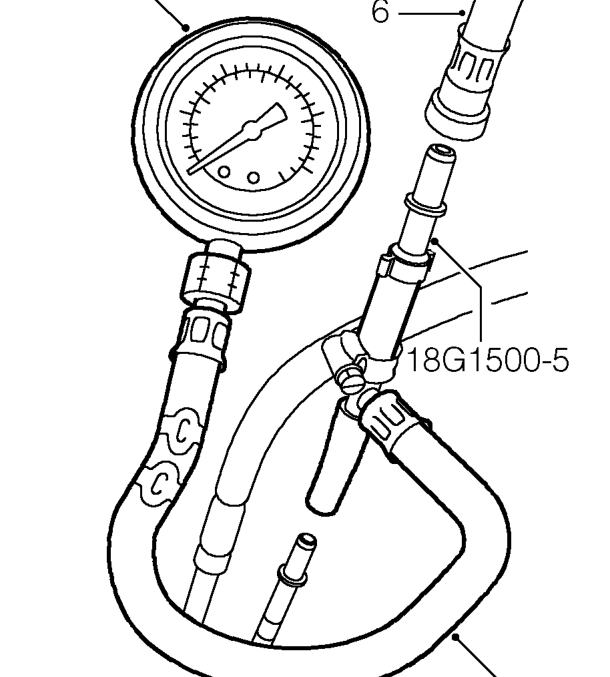

  1. Fit adapter hose 18G 1500-A to fuel pipe.
  2. Fit adaptor 18G 1500-5 to 18G 1500-A.
  3. Fit pressure gauge 18G 1500 to 18G 1500-A.
  4. Connect fuel feed hose quick fit connector to 18G 1500-5.
  5. Start engine check reading and pressure drop over one minute and then stop engine.
  6. Disconnect quick fit connector from 18G 1500-5.
  7. Remove 18G 1500 from 18G 1500-A.
  8. Remove 18g 1500-5 from 18G 1500-A.
  9. Remove 18G 1500-A from fuel pipe.
  10. Clean end of fuel pipe.
  11. Connect fuel feed hose connector to fuel feed pipe.

CAUTION: Ensure quick fit connector is correctly engaged on fuel pipe.

  1. Remove cloth positioned to absorb fuel spillage.
