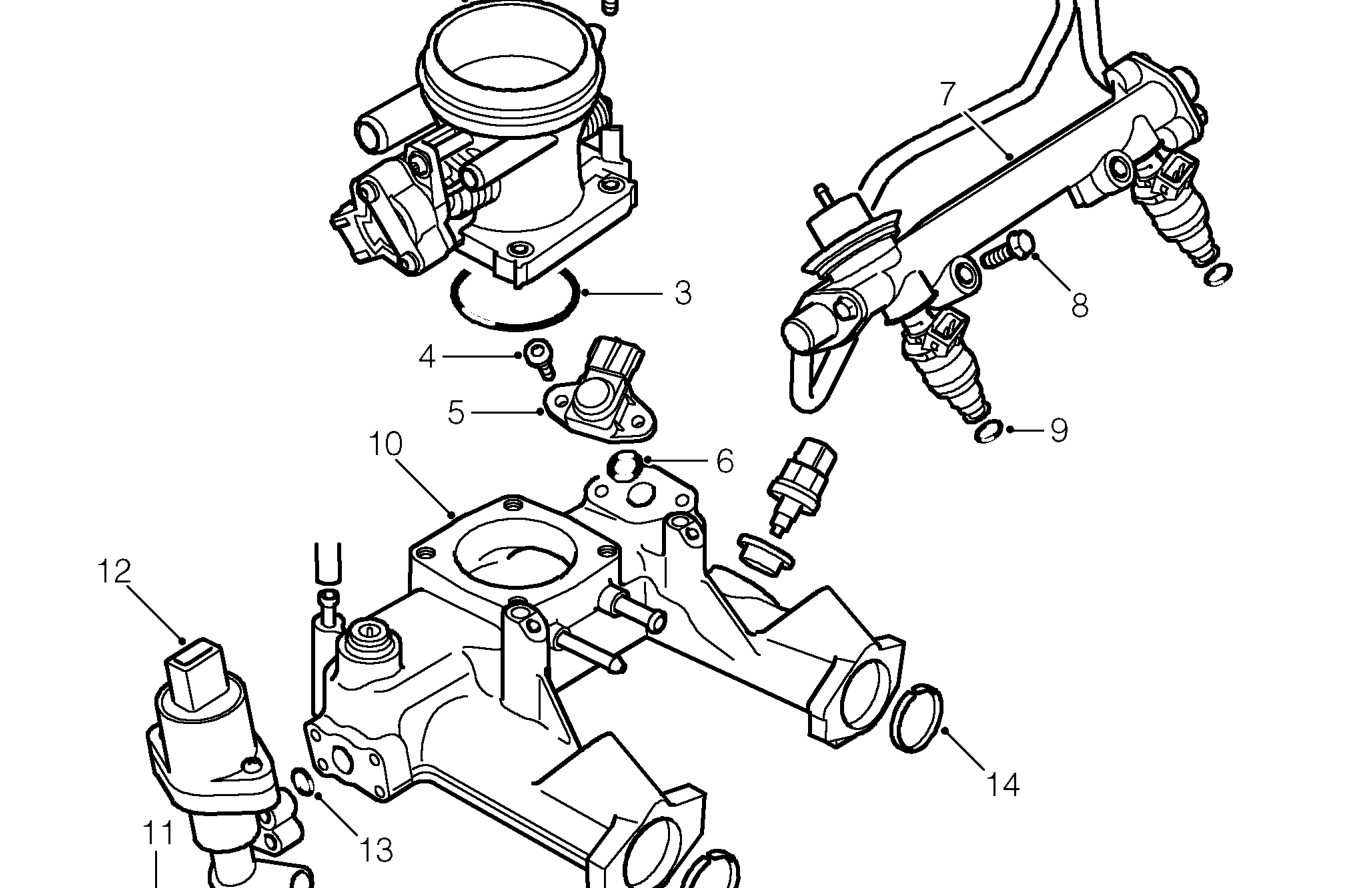

INLET MANIFOLD COMPONENTS

1. Throttle housing
2. Bolt - Throttle housing to inlet manifold
3. ’O’ ring - Throttle housing to inlet manifold
4. Bolt - MAP sensor to inlet manifold
5. MAP sensor
6. ’O’ ring - MAP sensor to inlet manifold
7. Fuel rail and injectors
8. Bolt - Fuel rail to inlet manifold
9. ’O’ ring - Injector to inlet manifold
10. Inlet manifold
11. Bolt - IACV to inlet manifold
12. Idle Air Control Valve (IACV)
13. ’O’ ring - IACV to inlet manifold
14. Inlet manifold locating ring
