Idler gear end-float (Manual gearbox)

Make

Mini

Model

Mini Workshop Manual

Year

1996–2000

Section

Adjustments › Idler gear end-float

Manual gearboxIdler gear end-float · page 1 of 2

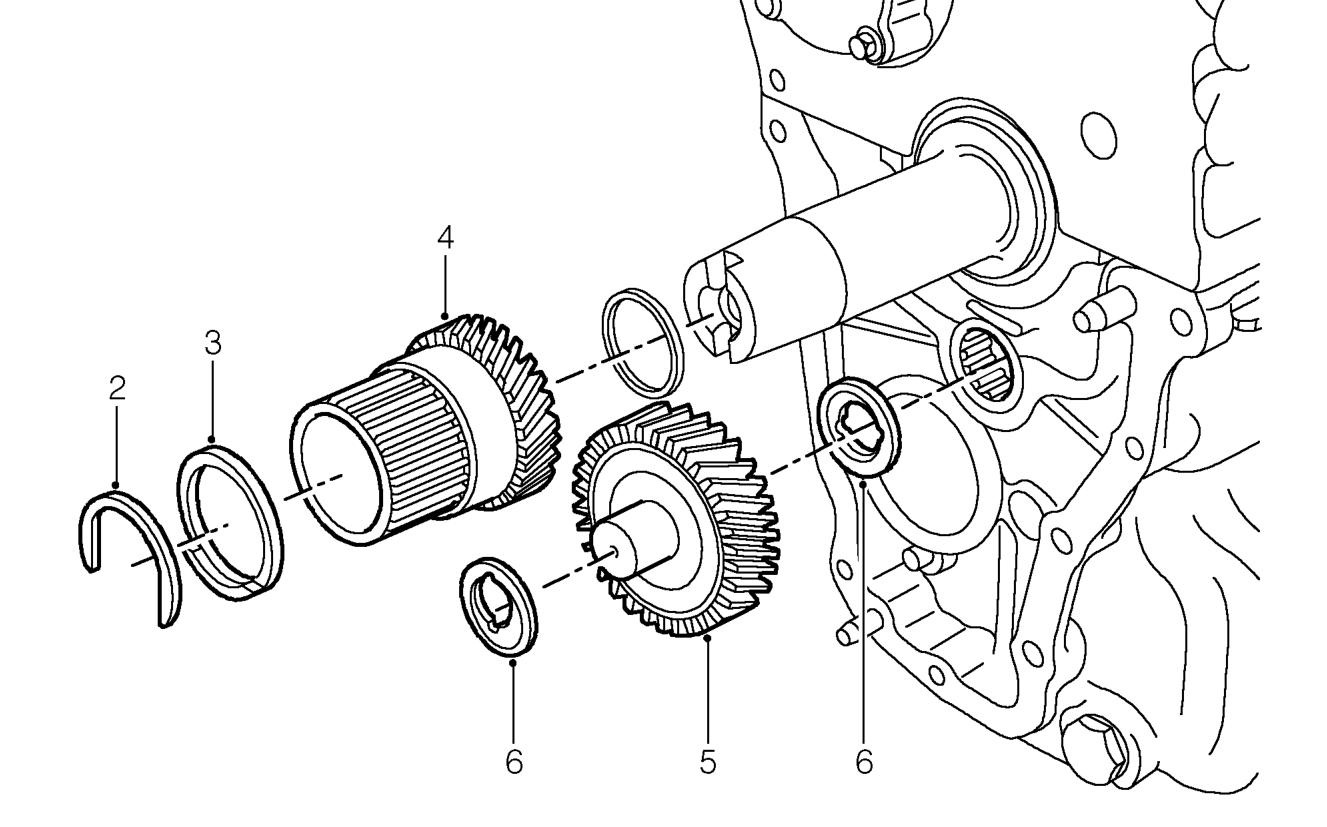

IDLER GEAR END-FLOAT

Service repair no - 37.20.10

Check and Adjust

Check

1. Remove flywheel housing gasket. See ENGINE, Repairs.
2. Remove ’C’ washer securing primary gear to crankshaft.
3. Remove backing ring from crankshaft.
4. Remove primary gear from crankshaft.
5. Remove idler gear assembly.
6. Remove selective washers from idler gear.
7. Clean selective washers, idler gear and flywheel housing.
8. Fit selective washers to idler gear.

11 Transmission
