Cooper Convertible (R57) L4-1.6L (N12) (2009)
Multiple Junction Connector: Service and Repair
61 13 ... - Installing fan connector for retrofitting/repairs
Special tools required:
-
61 9 041
-
61 9 042
Note:

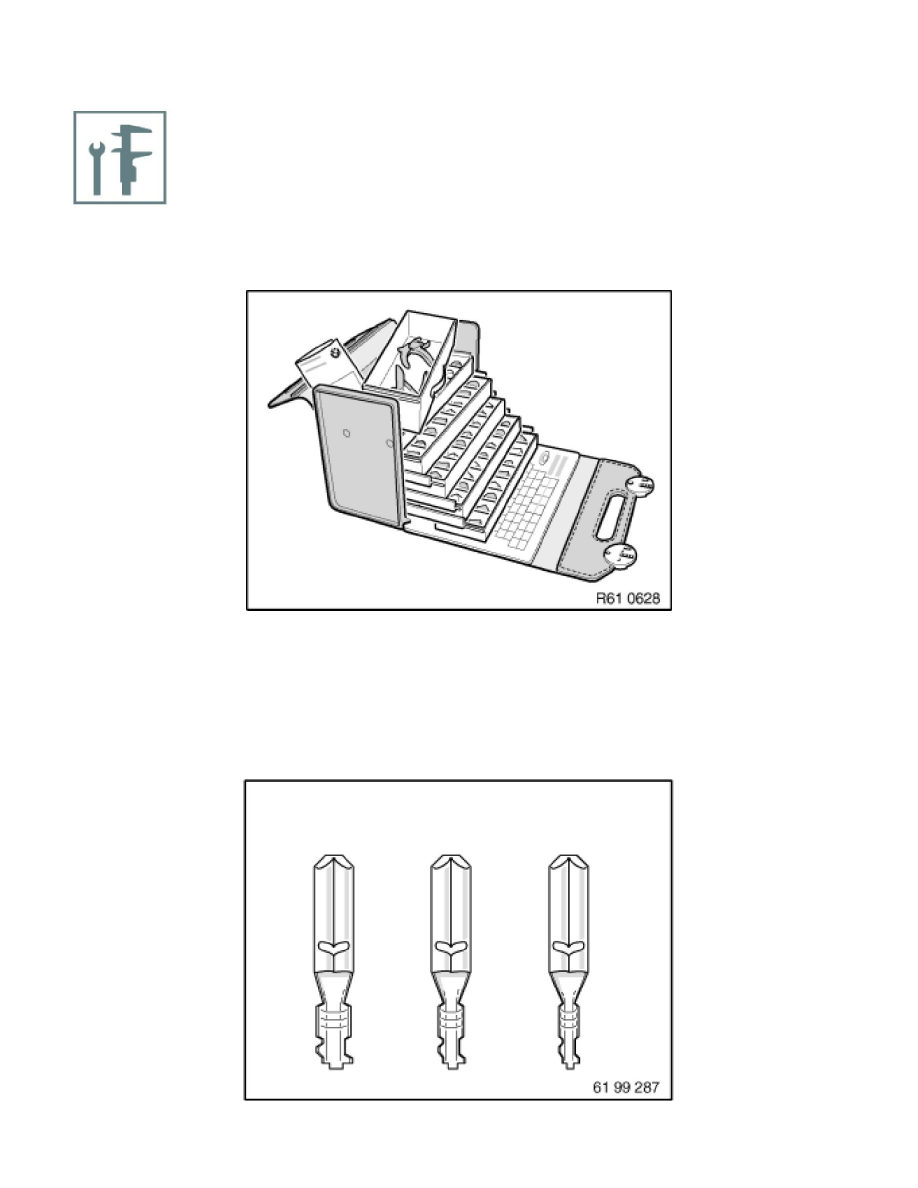

The repair range IV for vehicle electrical system contained the required special tools and individual parts for retrofitting and repair work with the aid
of fan connectors.
The case can no longer be ordered. Order individual parts for wiring harness repair through BMW Parts Service.
-
Refer to Service Information:
SI 02 04 07 341
Choose contact sleeve (up to 4 mm2) in accordance with wire cross-section.
