Cooper JCW Clubman (R55) L4-1.6L Turbo (N14) (2009)
/l4-1.6l_turbo_(n14)/Page-700003.png)

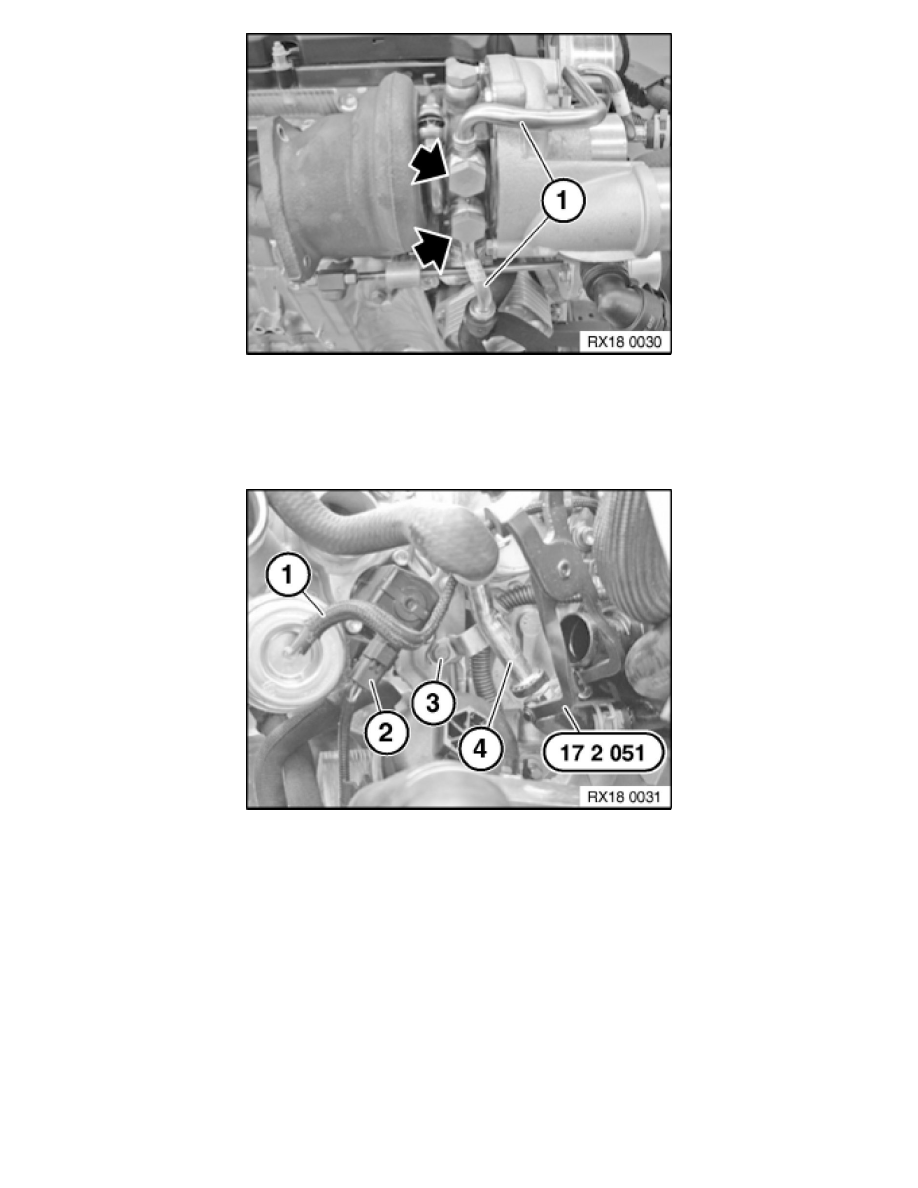

Release screws and detach lines (1).
Installation Note:
Replace seals.
Tightening torque 11 65 8AZ. See: Engine/Specifications/Mechanical Specifications/11 65 Turbocharger and Control
Pull off hose (1).
Unlock connector (2) and remove.
Unscrew bolt (3).
Release spring strap with special tool 17 2 051 See: Cooling System/Tools and Equipment/17 2 050 Pliers Set. Detach line (4) and remove.
