Cooper JCW Clubman (R55) L4-1.6L Turbo (N14) (2009)
/l4-1.6l_turbo_(n14)/Page-700004.png)

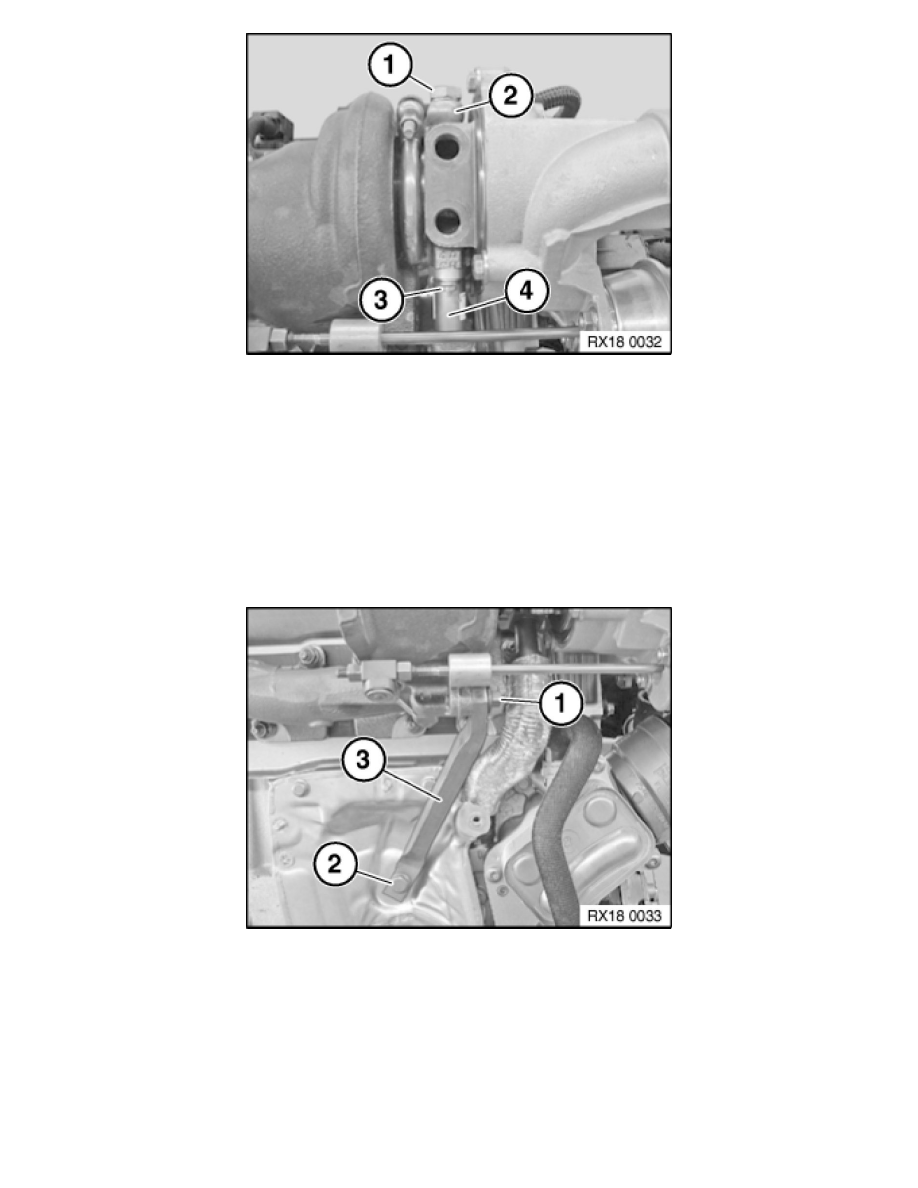

Release screw (1) and detach line (2).
Installation Note:
Replace seals.
Tightening torque 11 65 4AZ. See: Engine/Specifications/Mechanical Specifications/11 65 Turbocharger and Control
Release screw (3) and detach line (4).
Installation Note:
Replace sealing ring.
Tightening torque 11 65 5AZ. See: Engine/Specifications/Mechanical Specifications/11 65 Turbocharger and Control
Release screw (1).
Tightening torque 11 65 3AZ. See: Engine/Specifications/Mechanical Specifications/11 65 Turbocharger and Control
Release screw (2) and remove holder (3).
Tightening torque 11 65 6AZ. See: Engine/Specifications/Mechanical Specifications/11 65 Turbocharger and Control
