Cooper S (R56) L4-1.6L Turbo (N14) (2009)
/l4-1.6l_turbo_(n14)/Page-1473001.png)
Splash Guard: Service and Repair
51 47 490 Removing And Installing/Replacing Front Assembly Underbody Protection (Diesel)
NOTE: Picture created using the R56 COOPER D as the example. There may be differences in detail in the case of other models.

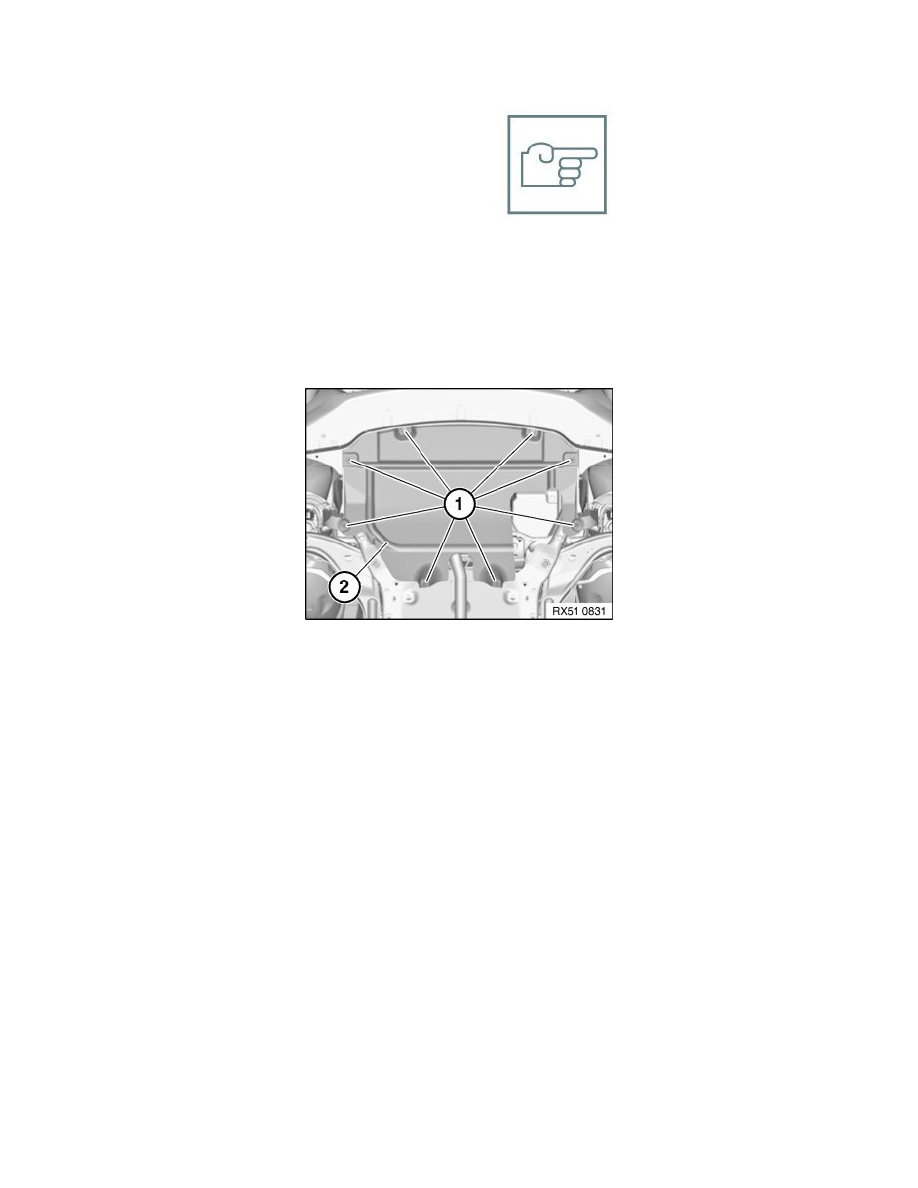

Release screws (1).
Pull forward underbody protection (2) under bumper trim and remove.
Installation note:
Centre underbody protection and tighten down screws.
