Heated Glass Element Switch: Testing and Inspection

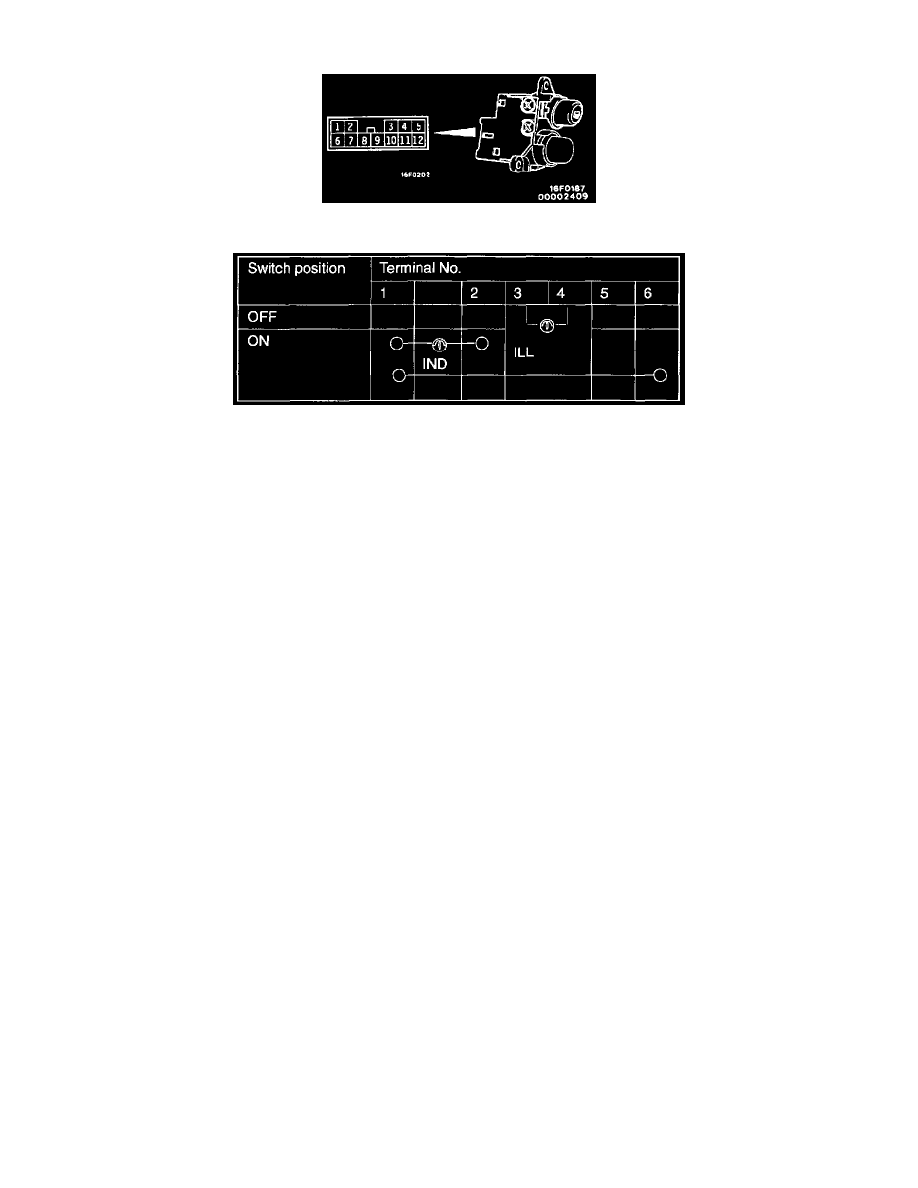

Rear Window Defogger Switch

Rear Window Defogger Switch

1.  Remove rear window defogger switch from the meter bezel.
2.  Operate the switch and check the continuity between the terminals.
