Eclipse V6-3.8L (6G75) (2006)

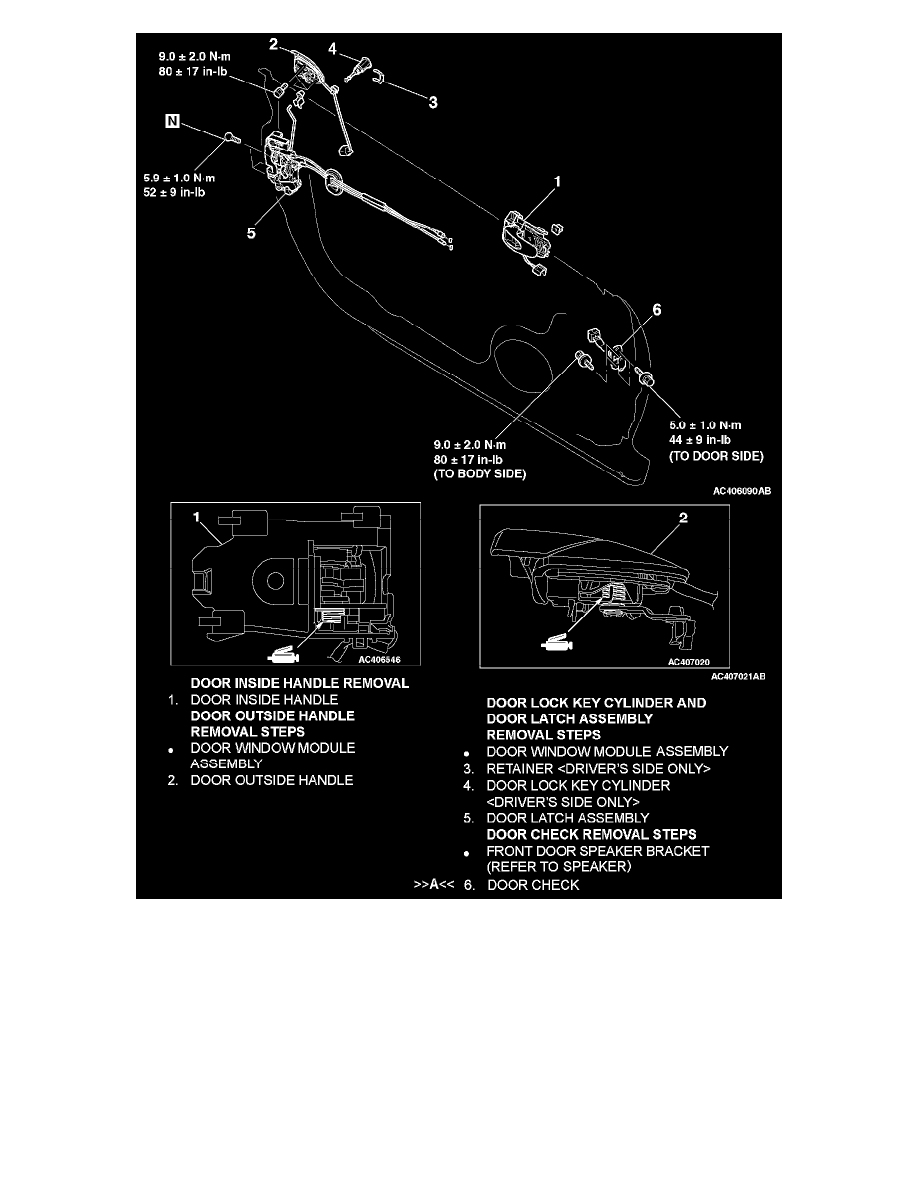

Removal Steps 1-6
REMOVAL AND INSTALLATION
CAUTION:
-
When the door lock key cylinder is replaced by key set of illustration <A>, register the encrypted code with the bar code on the ignition key in the
key set. Refer to Encrypted Code Registration Criteria Table in Antitheft and Alarm Systems.
-
When replacing by the door lock key cylinder of illustration <B>, do not register the encrypted code with the bar code on the ignition key supplied
simultaneously.
Required Special Tool:
-
MB991223: Harness Set
