Eclipse V6-3.8L (6G75) (2006)
/Page-1072001.png)

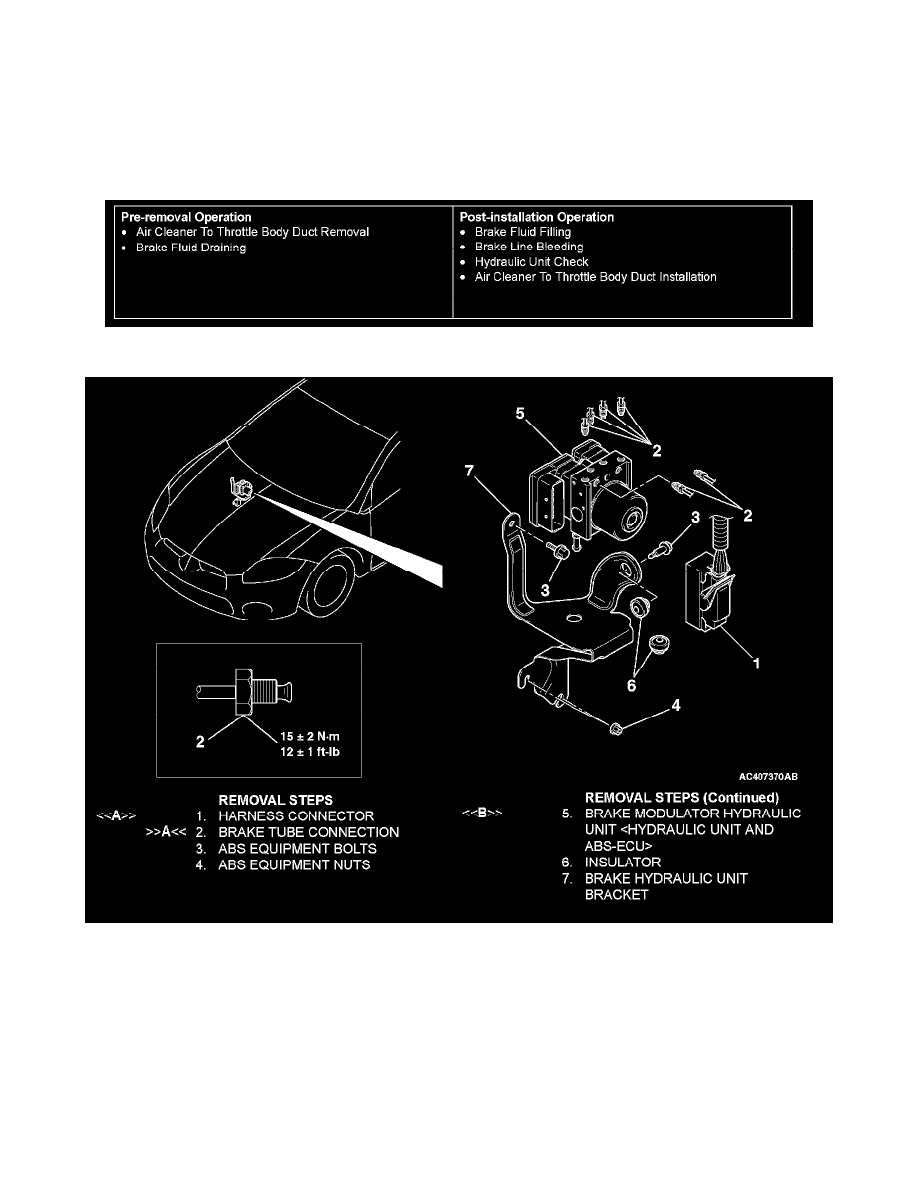

Hydraulic Control Assembly - Antilock Brakes: Service and Repair
ABS
HYDRAULIC UNIT
REMOVAL AND INSTALLATION
<2.4L ENGINE>
NOTE: The ABS-ECU is integrated in the hydraulic unit.
Pre-removal & Post-installation Operation
Removal Steps 1-7
<3.8L ENGINE>
NOTE: The ABS-ECU or ABS/TCL-ECU (option) is integrated in the hydraulic unit.
