Eclipse V6-3.8L (6G75) (2006)
/Page-1295001.png)
Ambient Temperature Sensor / Switch HVAC: Technical Service Bulletins
A/C - Revised Ambient Temperature Sensor Diagnosis
No: TSB-10-55-005
DATE: June, 2010
MODEL: See below
SUBJECT:
AMBIENT TEMPERATURE SENSOR DIAGNOSIS - SERVICE MANUAL REVISION
TSB REvision: [TSB-10-55-005]
PURPOSE
The ambient temperature sensor should not be removed for voltage testing. In some cases a CAUTION statement must be added to the inspection
procedures for checking the ambient temperature sensor. In other cases an incorrect CAUTION statement must be replaced with the correct statement.
This Technical Service Bulletin contains this information.
AFFECTED VEHICLES
2005-2010 Galant
2006-2010 Eclipse
2007-2010 Eclipse Spyder
2004-2010 Endeavor
AFFECTED SERVICE MANUALS
2005-2010 Galant - Group 55A Manual Air Conditioning
2006 Eclipse - Group 55A Manual Air Conditioning; Group 55B Automatic Air Conditioning
2007-2010 Eclipse/Eclipse Spyder - Group 55A Manual Air Conditioning; Group 55B Automatic Air Conditioning.
2004-2010 Endeavor - Group 55A Manual air Conditioning
DETAILS

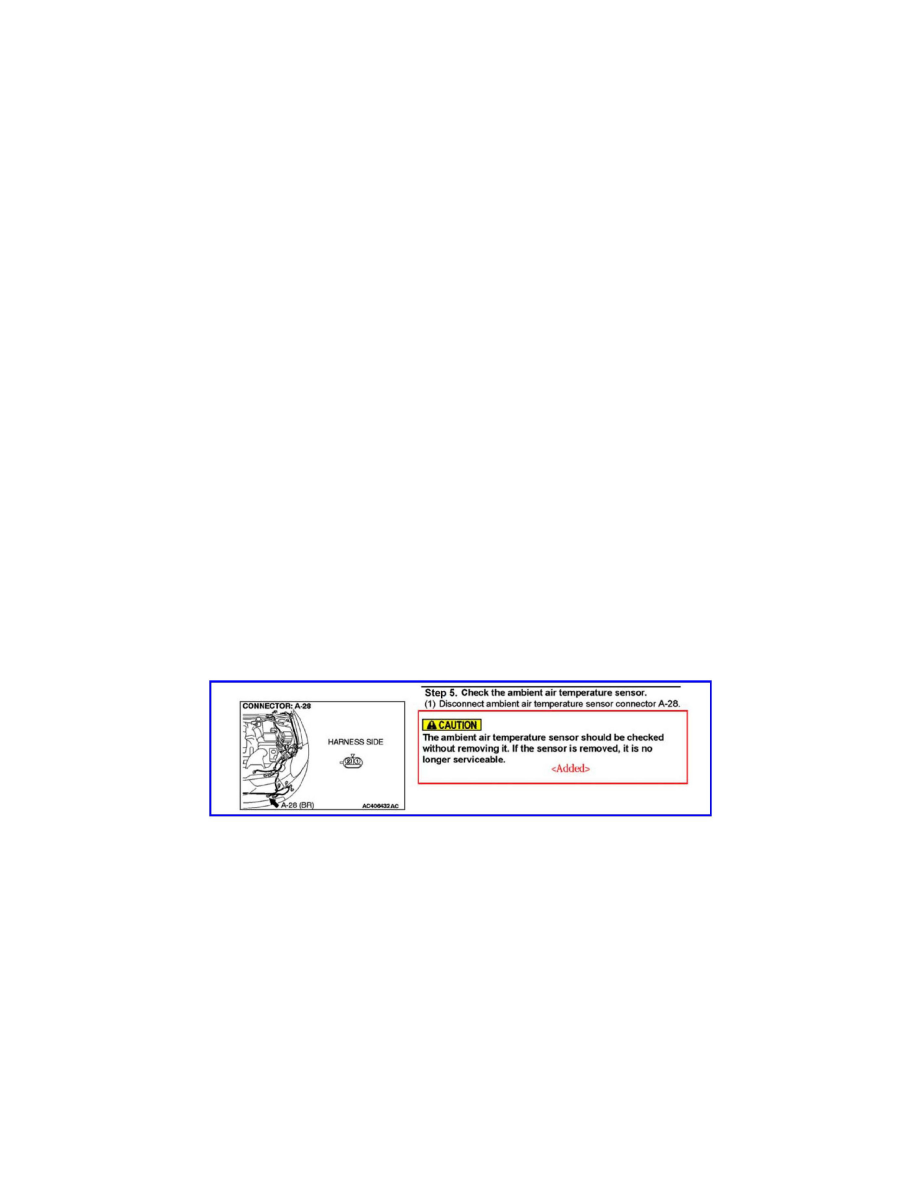

2005 Galant page 55A-15; 2006-2007 Galant pages 55A-16; 2008-2009 Galant pages 55A-14.
2006 Eclipse pages 55A-13 18 55B-22 27; 2007-2009 Eclipse/Eclipse Spyder pages 55A-13, 18, 55B-21 26; 2010 Eclipse/Eclipse Spyder pages
55A-12, 17, 55B-21-26.
Add the information to the pages indicated above.
