Eclipse V6-3.8L (6G75) (2006)

Page 1
background image

Compressor Clutch: Testing and Inspection
A/C Compressor Clutch Operation Check

INSPECTION

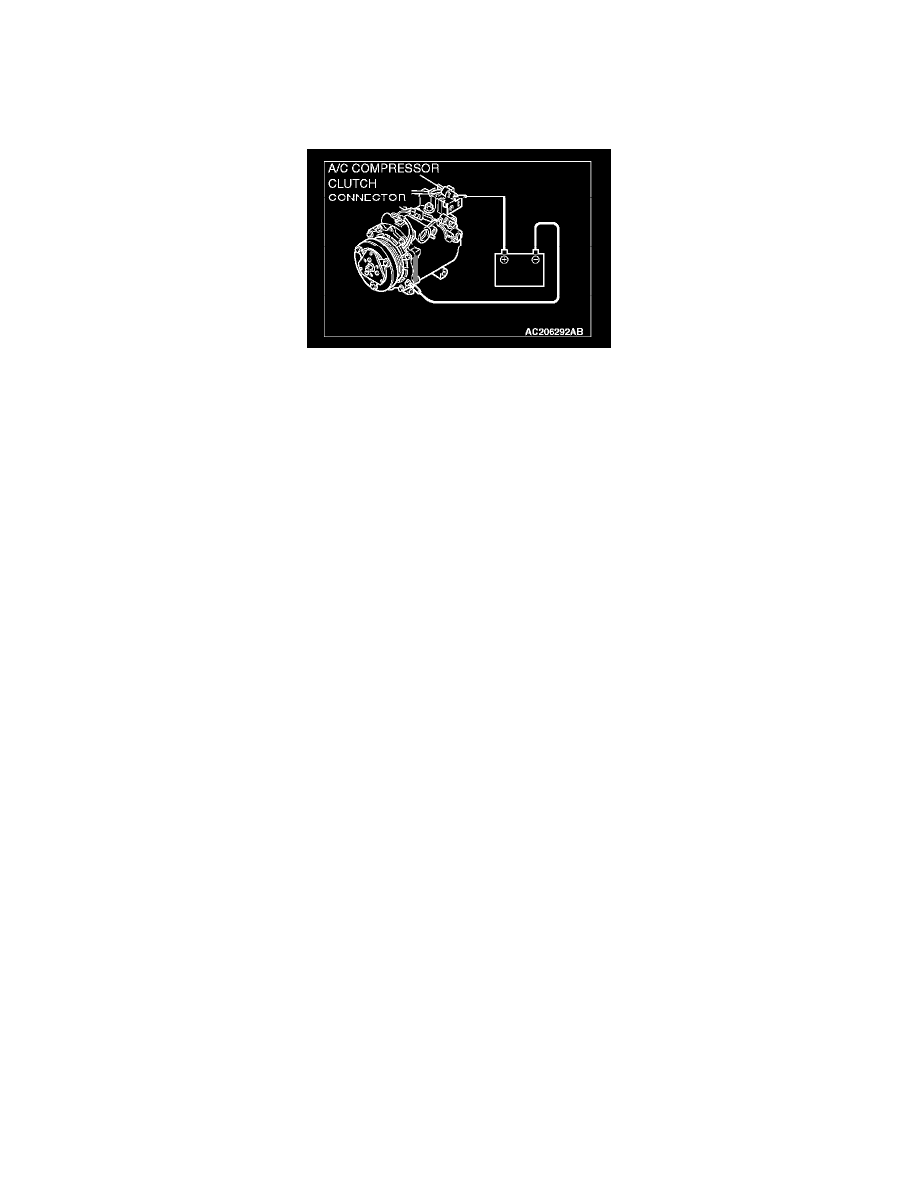

A/C COMPRESSOR CLUTCH OPERATION CHECK

Connect the compressor connector terminal to the battery positive (+) terminal and ground the battery's negative (-) terminal to the compressor unit. At
that time, the A/C compressor clutch should make a definite operating sound.
