Eclipse V6-3.8L (6G75) (2006)

Page 1
background image

System Relay: Testing and Inspection

POWER RELAY CHECK

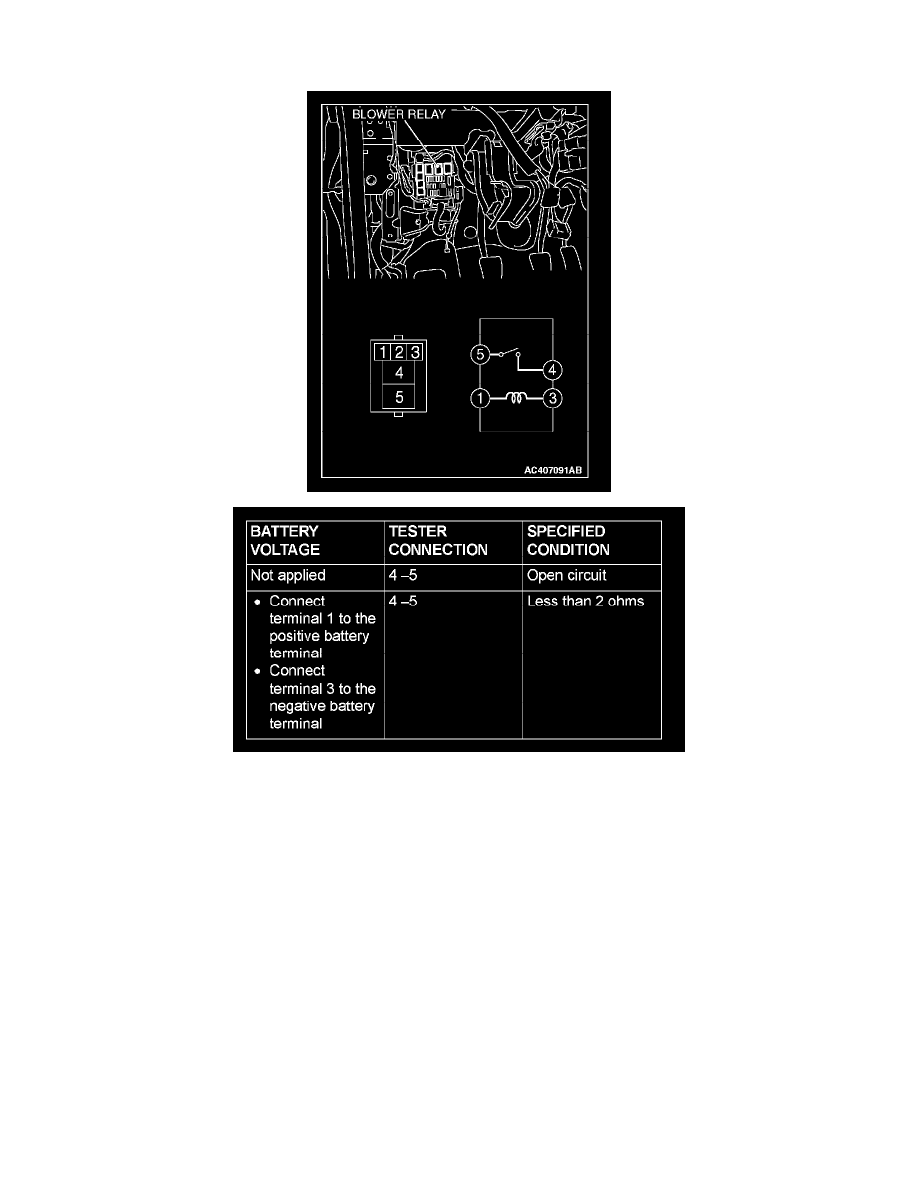

BLOWER RELAY CONTINUITY CHECK
