Alignment: Specifications

ALIGNMENT

FRONT

TOE-IN
Standard value ............................................................................................................................................................................  0 ± 3 mm (0 ± 0.12 inch)

STEERING ANGLE
Standard value:

 ......................................................................................................................................................................................  31° 48' ± 2°00' <Inner wheel>
 ...............................................................................................................................................................................  27° 06' <Outer wheel (reference)>

CAMBER, CASTER AND KINGPIN INCLINATION
Standard value:

Camber .....................................................................................................................................................  0°00' ± 30' (Left/right deviation within 30')
Caster .......................................................................................................................................................  3°00' ± 30' (Left/right deviation within 30')
Kingpin inclination ................................................................................................................................................................................  12°54' ± 1°30'

REAR
CAMBER
Standard value ..............................................................................................................................................  -0°50' ± 30' (Left/right deviation within 30')

TOE-IN
Standard value .......................................................................................................................................................................  3 ± 3 mm (0.12 ± 0.12 inch)

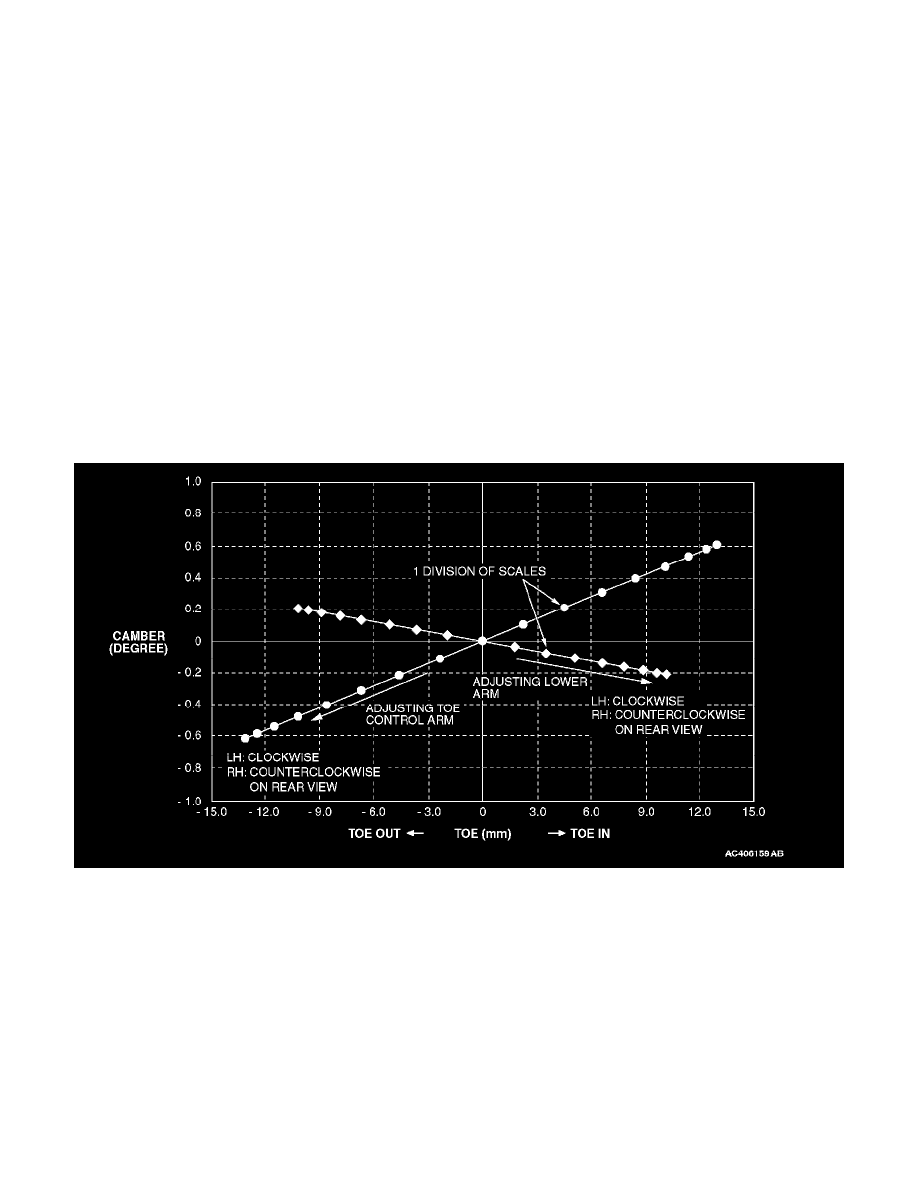

CAMBER AND TOE REFERENCE TABLE
