Eclipse V6-3.8L (6G75) (2006)
Spark Plug: Testing and Inspection
Spark Plug Check and Cleaning

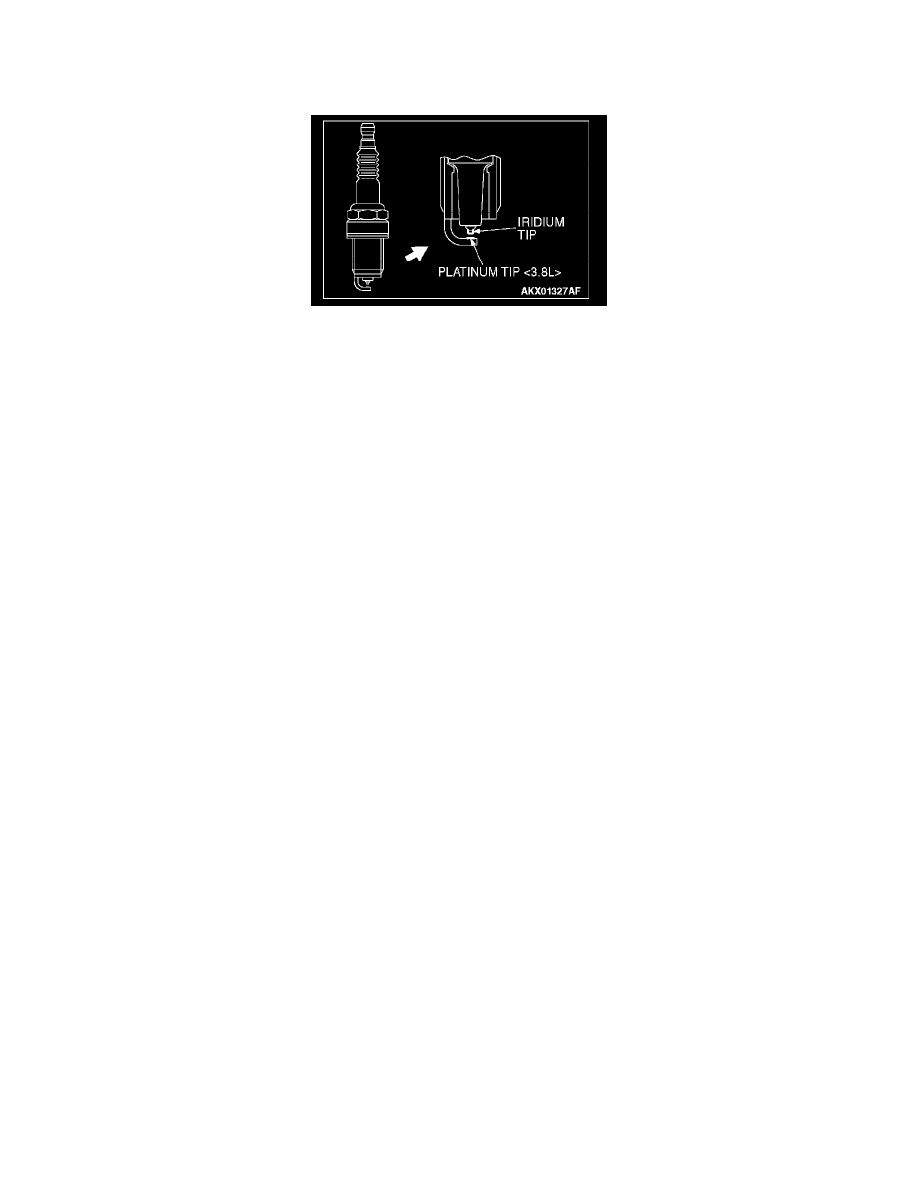

SPARK PLUG CHECK AND CLEANING
CAUTION:
-
Do not attempt to adjust the gap of the iridium plug.
-
Cleaning of the iridium plug may result in damage to the iridium tips. Therefore, if carbon deposits must be removed, use a plug cleaner and
complete cleaning within 20 seconds to protect the electrode. Do not use a wire brush.
Check the plug gap and replace if the limit is exceeded.
Standard value: 0.7 - 0.8 mm (0.028 - 0.031 inch)
Limit:
1.2 mm (0.047 inch) <2.4L Engine>
0.95mm (0.037 inch) <3.8L Engine>
