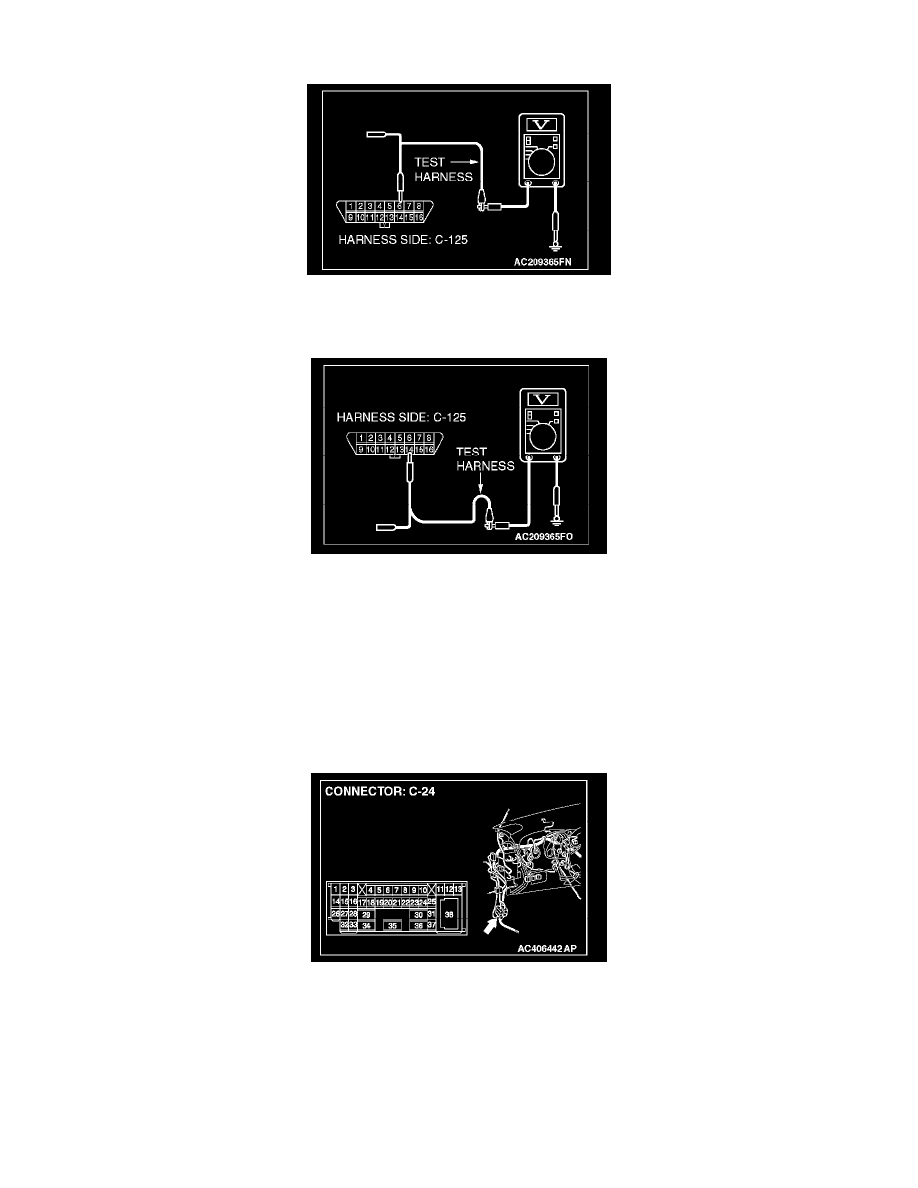

data link connector C-125.

2. Turn the ignition switch to the "ON" position.

3. Measure the voltage between data link connector terminal 6 (CAN_H) and body ground.

OK: 4.0 volts or less

4. Measure the voltage between data link connector terminal 14 (CAN_L) and body ground.

OK: 4.0 volts or less

Q: Is the check result normal?

YES: Go to Step 14.

NO: Go to Step 2.

STEP 2. Check the CAN line of the front wiring harness for a short to the power supply. Measure the voltage at intermediate connector C-24.

1. Disconnect intermediate connector C-24, and measure the voltage at the male side (at front wiring harness side).
2. Turn the ignition switch to the "ON" position.
