Eclipse V6-3.8L (6G75) (2006)
/Page-692047.png)

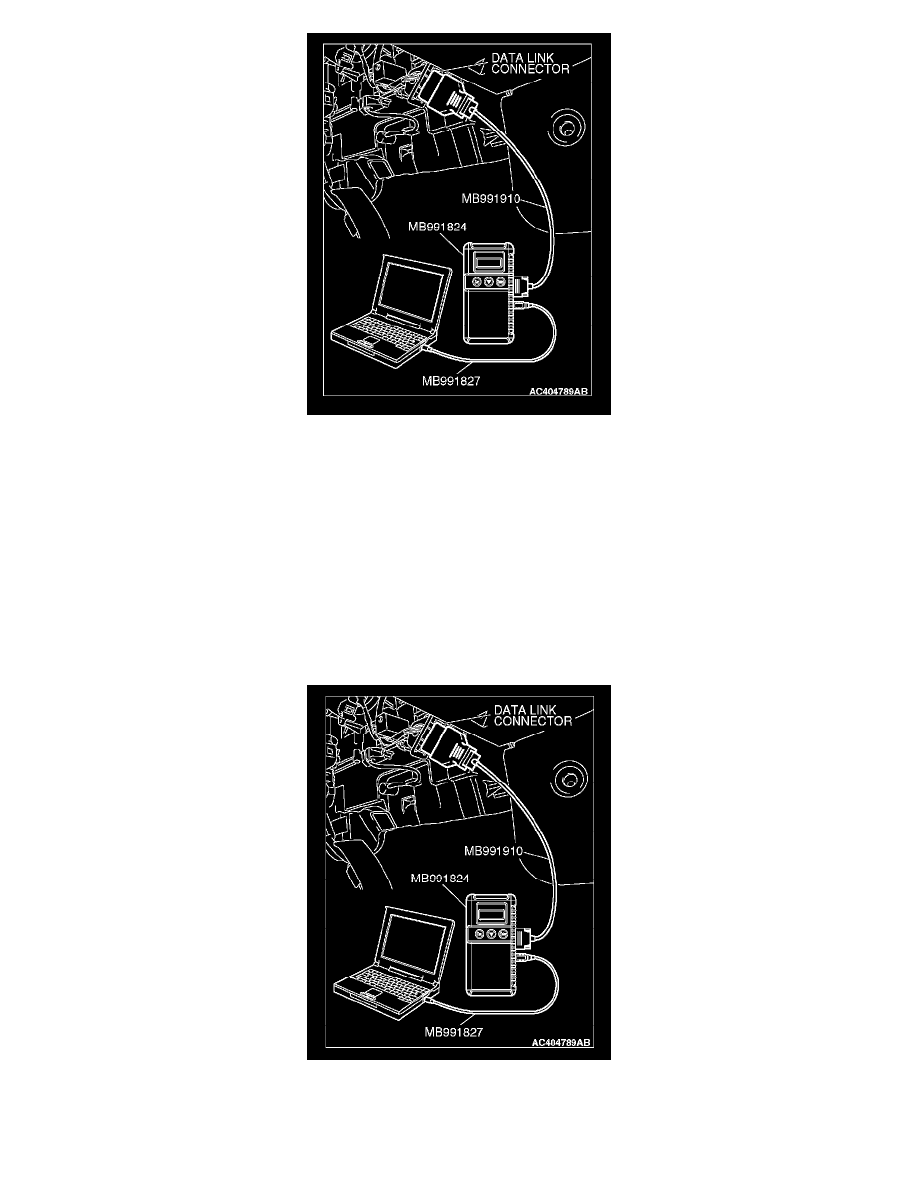

1. Connect scan tool MB991958 to the data link connector.
2. Diagnose CAN bus lines, and check if scan tool MB991958 screen shows normal state.
Q: Is the check result normal?
YES: Intermittent malfunction.
NO: Check the combination meter connector, and repair if necessary. If the combination meter connector is in good condition, replace the
combination meter.
STEP 17. Retest the system.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Diagnose CAN bus lines, and check if scan tool MB991958 screen shows normal state.
Q: Is the check result normal?
