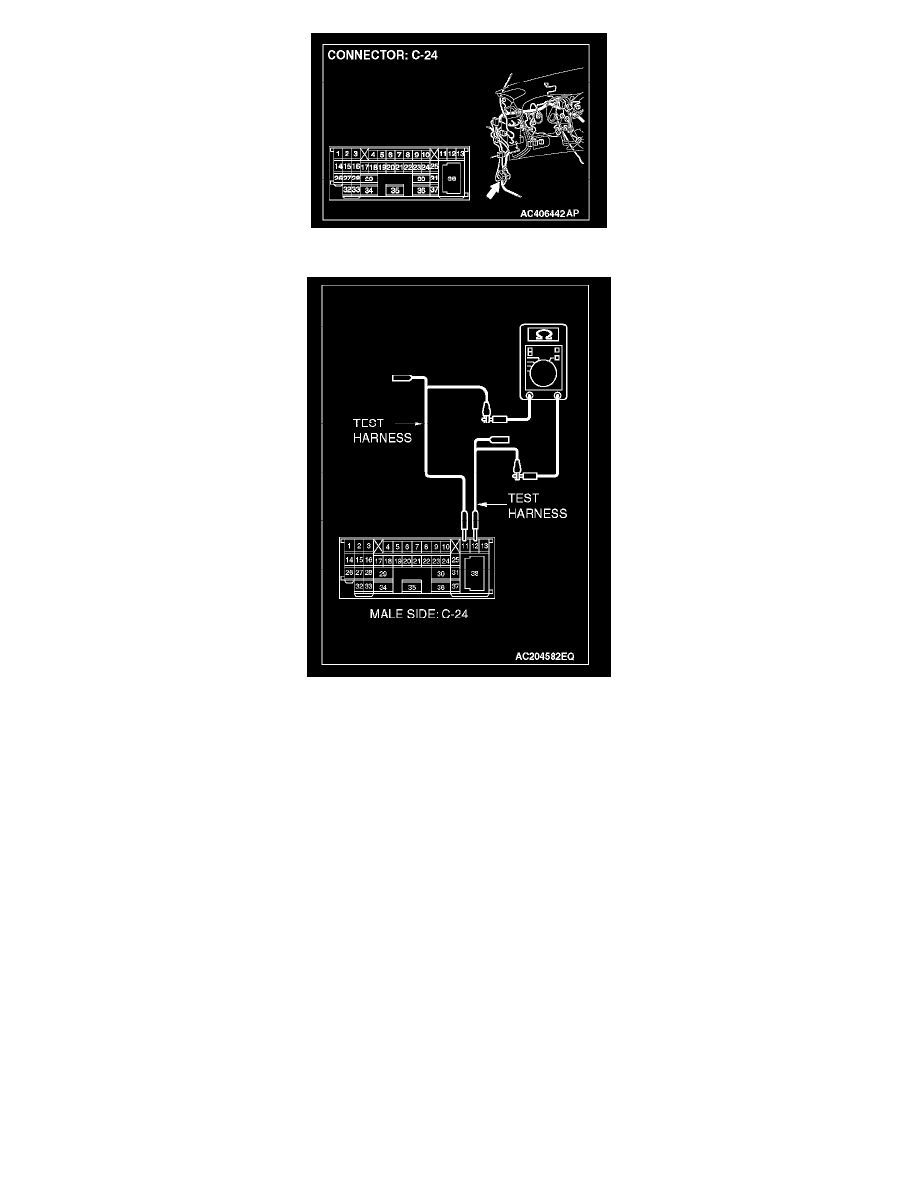

2. Disconnect intermediate connector C-24, and measure the resistance at the male side (at front wiring harness side).

3. Measure the resistance between intermediate connector terminals 11 and 12.

OK: 120 ± 20 ohms

Q: Is the check result normal?

YES: Go to Step 3.

NO: Go to Step 12.

STEP 3. Check the CAN_H and L lines between joint connector (3) and the combination meter for a short circuit. Measure the resistance at
joint connector (3) C-03.

1. Disconnect the negative battery terminal.
