STEP 2. Check the CAN bus lines between the ABS-ECU <vehicles without traction control system> or ABS/TCL-ECU <vehicles with traction
control system> and the ECM <M/T> or PCM <A/T>. Measure the resistance between ABS-ECU connector A-02 <vehicles with traction
control system> or ABS/TCL-ECU connector <vehicles with traction control system> and ECM connector <M/T> or PCM connector <A/T>

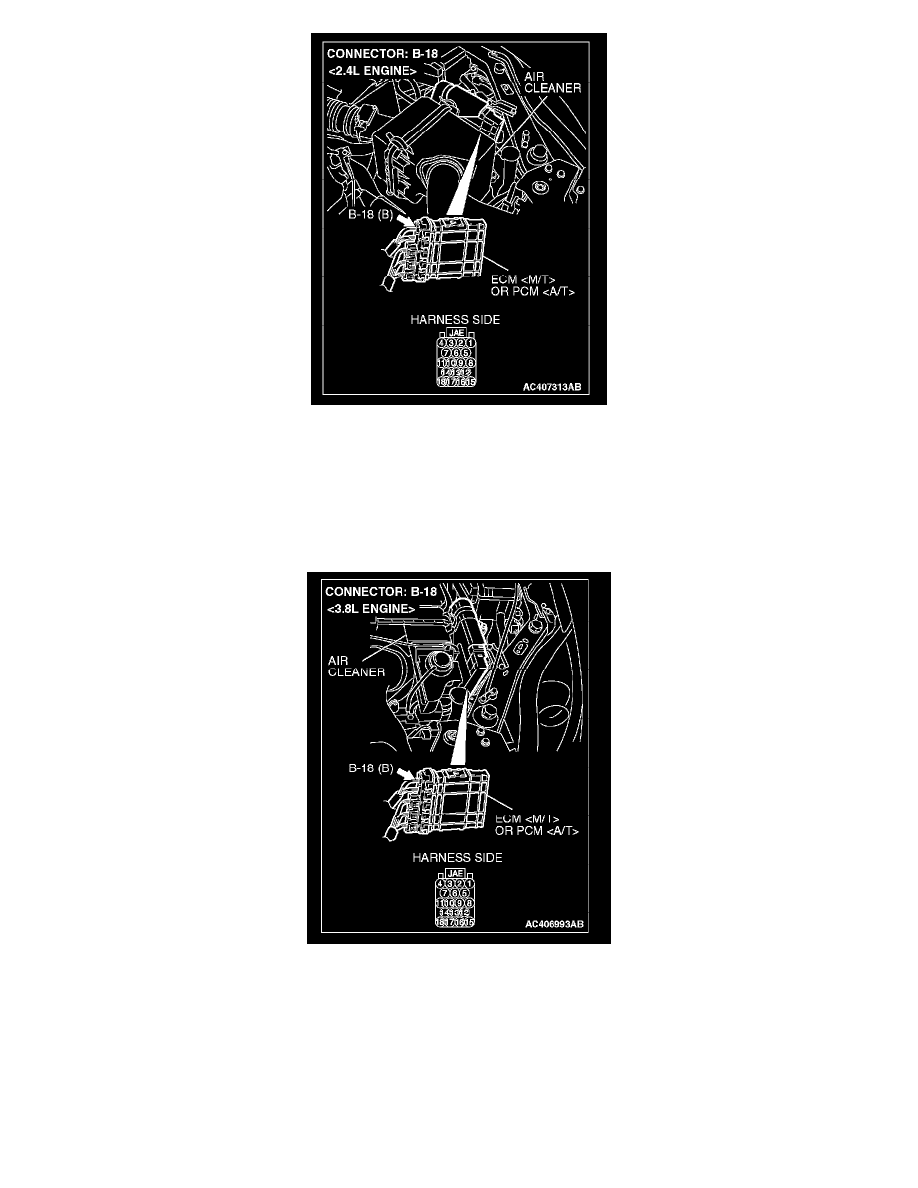

B-18.

CAUTION:

-

A digital multimeter should be used.

-

The test wiring harness should be used.

1. Disconnect ABS-ECU connector A-02 <vehicles without traction control system> or ABS/TCL-ECU connector A-03 <vehicles with traction

control system> and ECM <M/T> or PCM connector <A/T> B-18, and measure the resistance between each wiring harness side connector.
