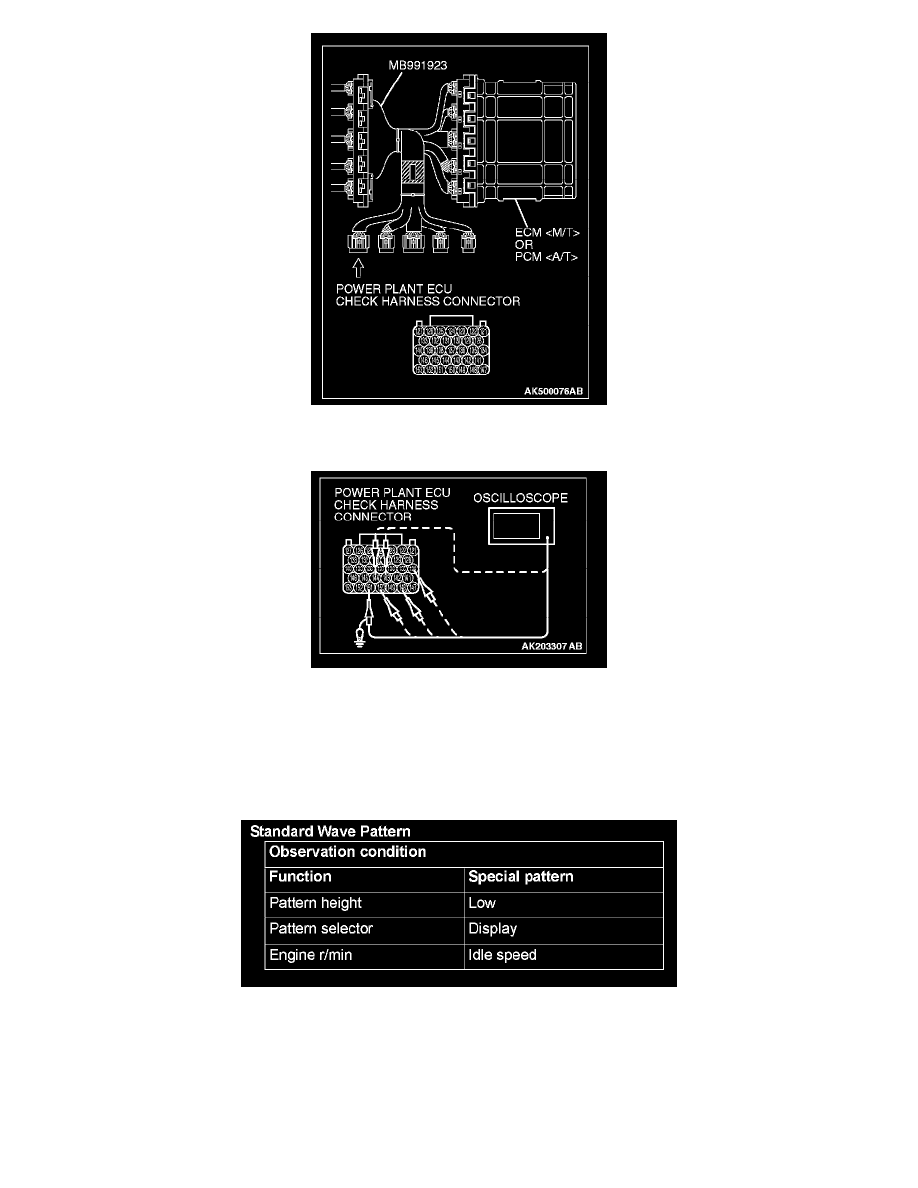

1. Disconnect all ECM <M/T> connectors or PCM <A/T> connectors. Connect the check harness special tool (MB991923) between the separated

connectors.

2. Connect the oscilloscope probe to each check harness connector terminal to analyze each cylinder:

-

Terminal No. 151 for the number 1 cylinder.

-

Terminal No. 150 for the number 2 cylinder.

-

Terminal No. 144 for the number 3 cylinder.

-

Terminal No. 148 for the number 4 cylinder.

-

Terminal No. 143 for the number 5 cylinder.

-

Terminal No. 134 for the number 6 cylinder.
