Eclipse V6-3.8L (6G75) (2006)
/Page-541002.png)

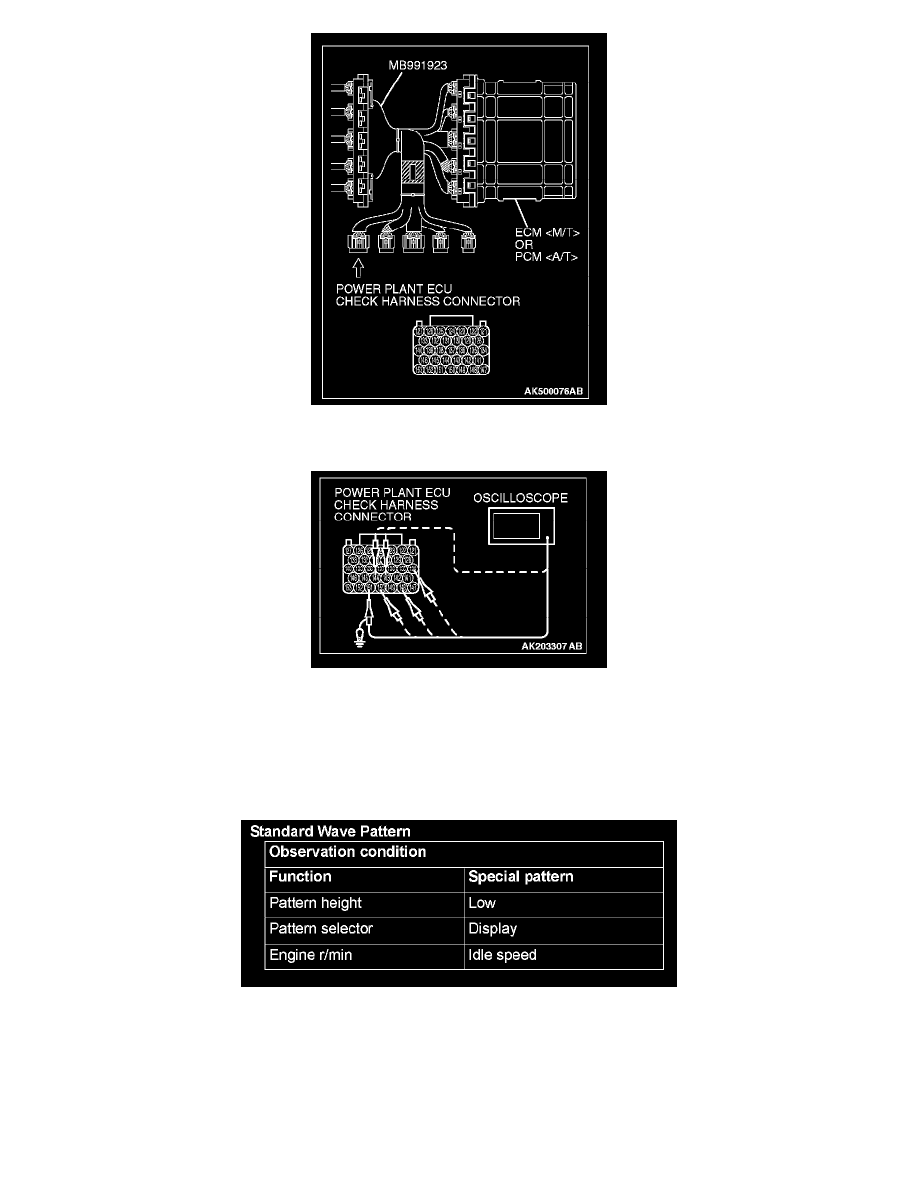

1. Disconnect all ECM <M/T> connectors or PCM <A/T> connectors. Connect the check harness special tool (MB991923) between the separated
connectors.
2. Connect the oscilloscope probe to each check harness connector terminal to analyze each cylinder:
-
Terminal No. 151 for the number 1 cylinder.
-
Terminal No. 150 for the number 2 cylinder.
-
Terminal No. 144 for the number 3 cylinder.
-
Terminal No. 148 for the number 4 cylinder.
-
Terminal No. 143 for the number 5 cylinder.
-
Terminal No. 134 for the number 6 cylinder.
