Eclipse V6-3.8L (6G75) (2006)
Air Bag: Removal and Replacement
AIR BAG MODULE(S) AND CLOCK SPRING
REMOVAL AND INSTALLATION
WARNING:
-
Never attempt to disassemble or repair the air bag modules or clock spring. If faulty, replace it.
-
Do not drop the air bag modules or clock spring or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust
is detected.
-
The air bag modules should be stored on a flat surface with the pad cover facing upward. Do not place anything on top of it.
-
Do not expose the air bag modules to temperatures over 93 degrees C (200 degrees F).
-
After deployment of an air bag, replace the clock spring with a new one.
-
Wear gloves and safety glasses when handling air bags that have already deployed.
-
An undeployed air bag module should only be disposed of in accordance with the procedures.
-
When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been
installed in the vehicle. (On-vehicle Service)
<SIDE-AIRBAG MODULE>
For removal and installation of the front seatback assembly with side-airbag module, Refer to Interior, Front Seat.

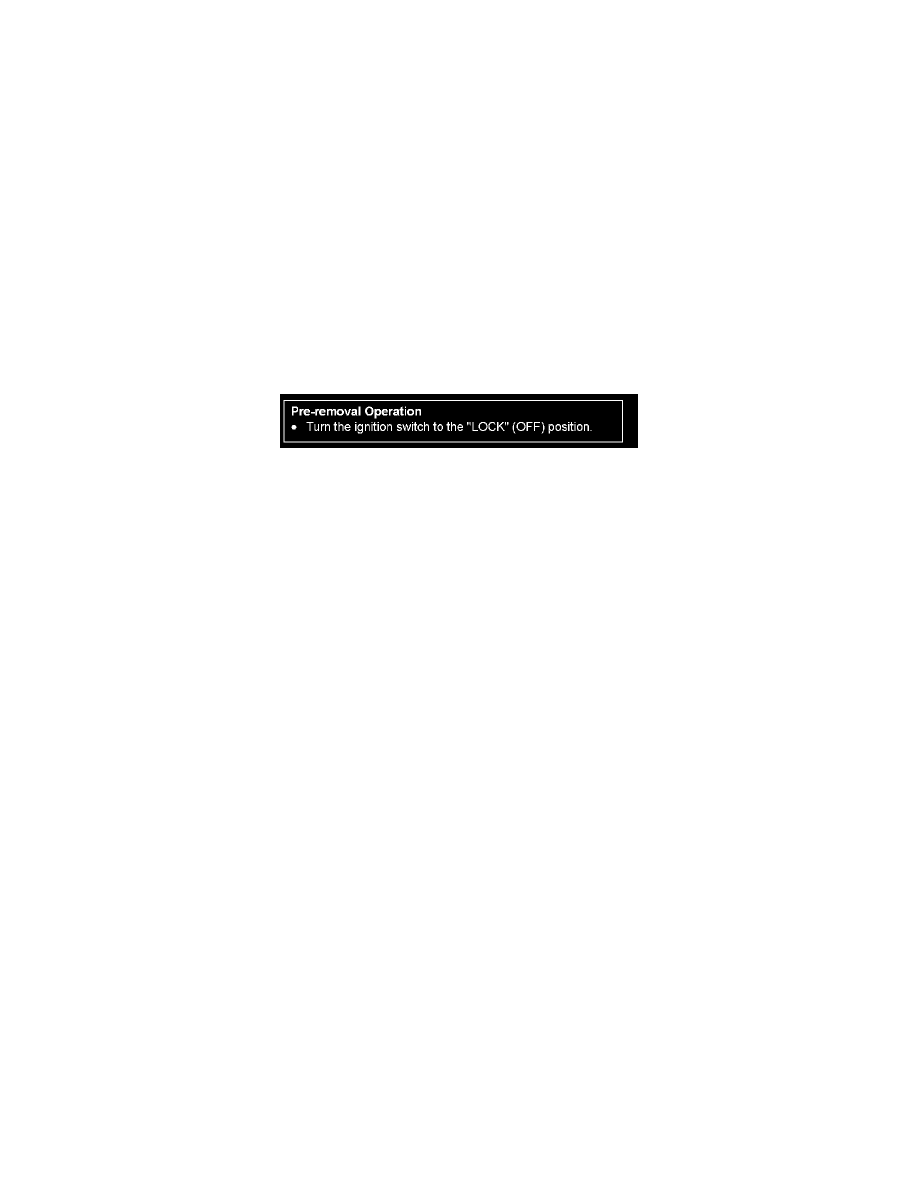

Pre-removal Operation
