Eclipse V6-3.8L (6G75) (2006)

Page 1
background image

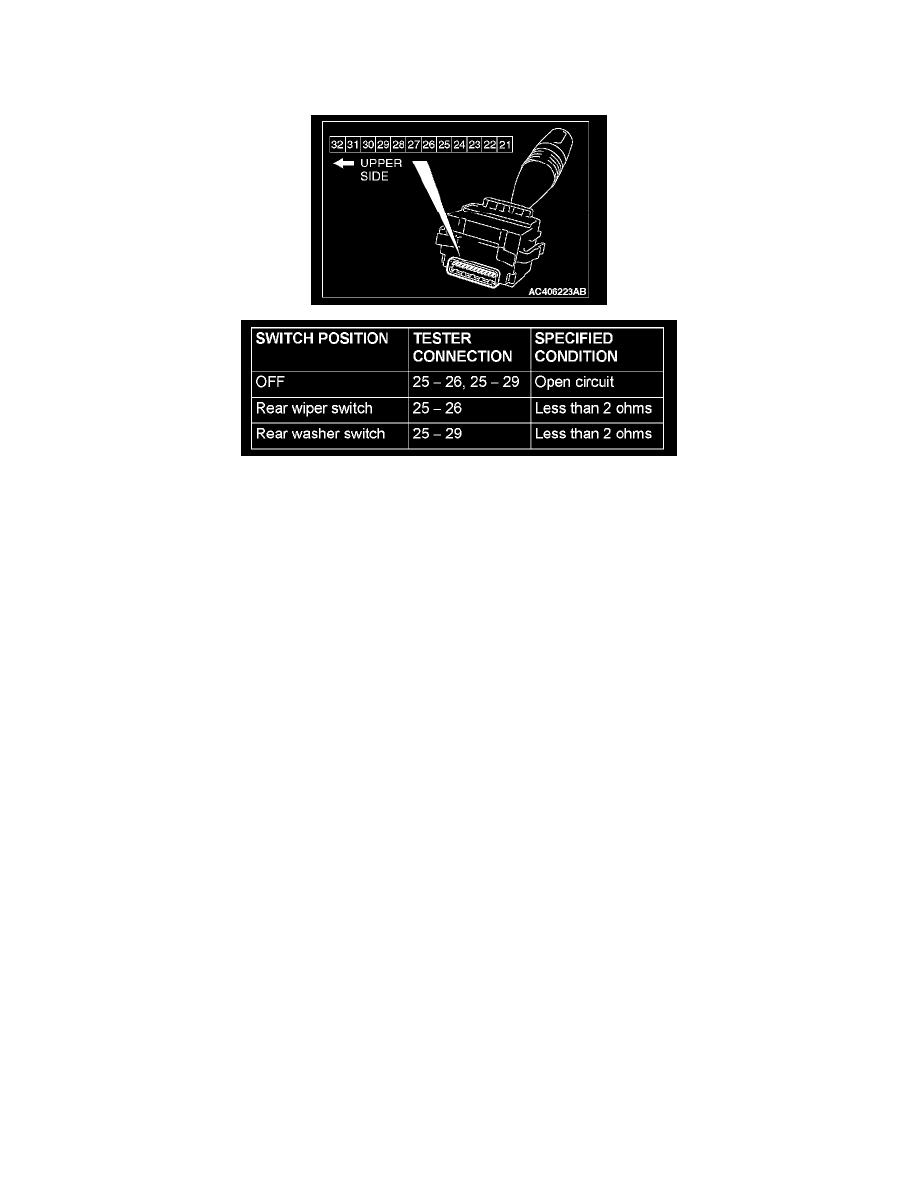

Wiper Switch: Testing and Inspection
Rear Wiper and Washer Switch Check

REAR WIPER AND WASHER SWITCH CHECK

Check continuity between the switch terminals.
