Shift Solenoid: Diagram Information and Instructions

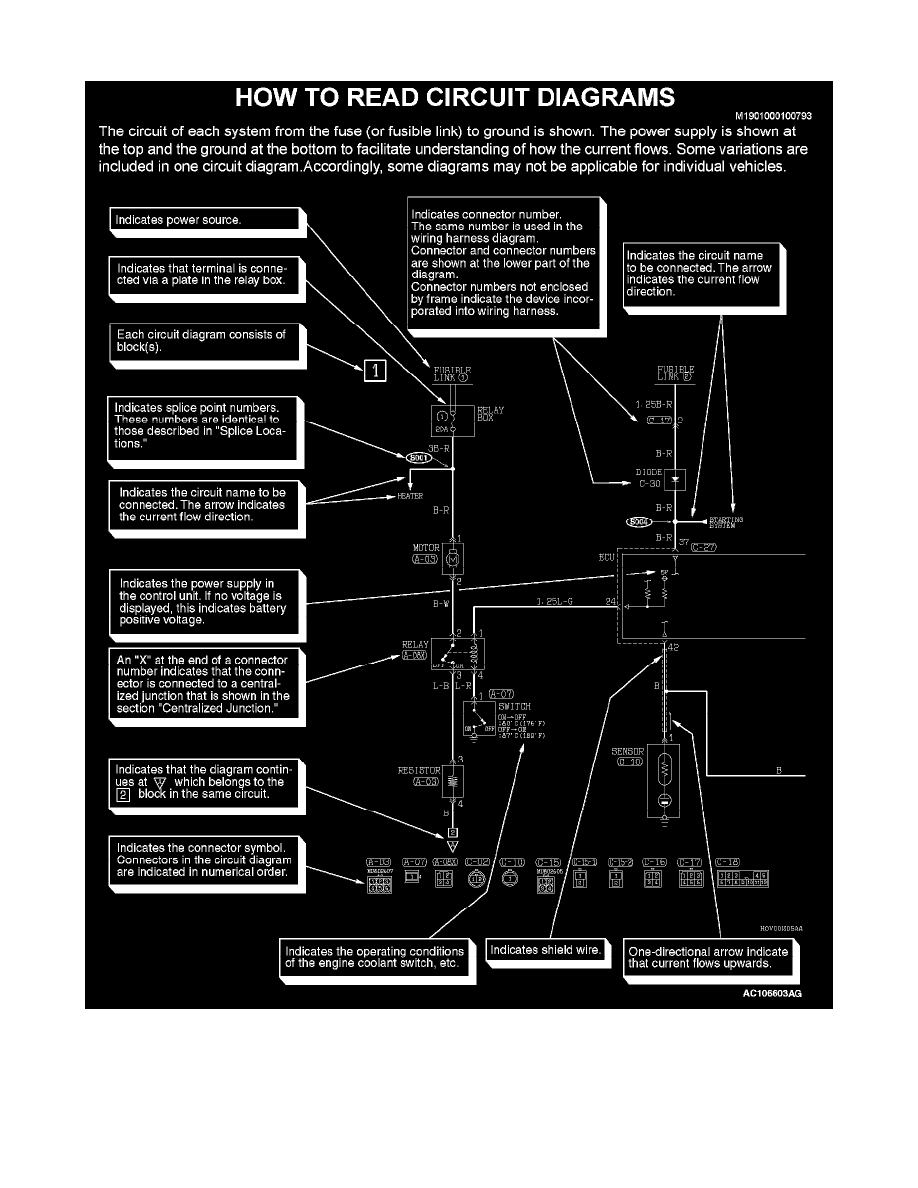

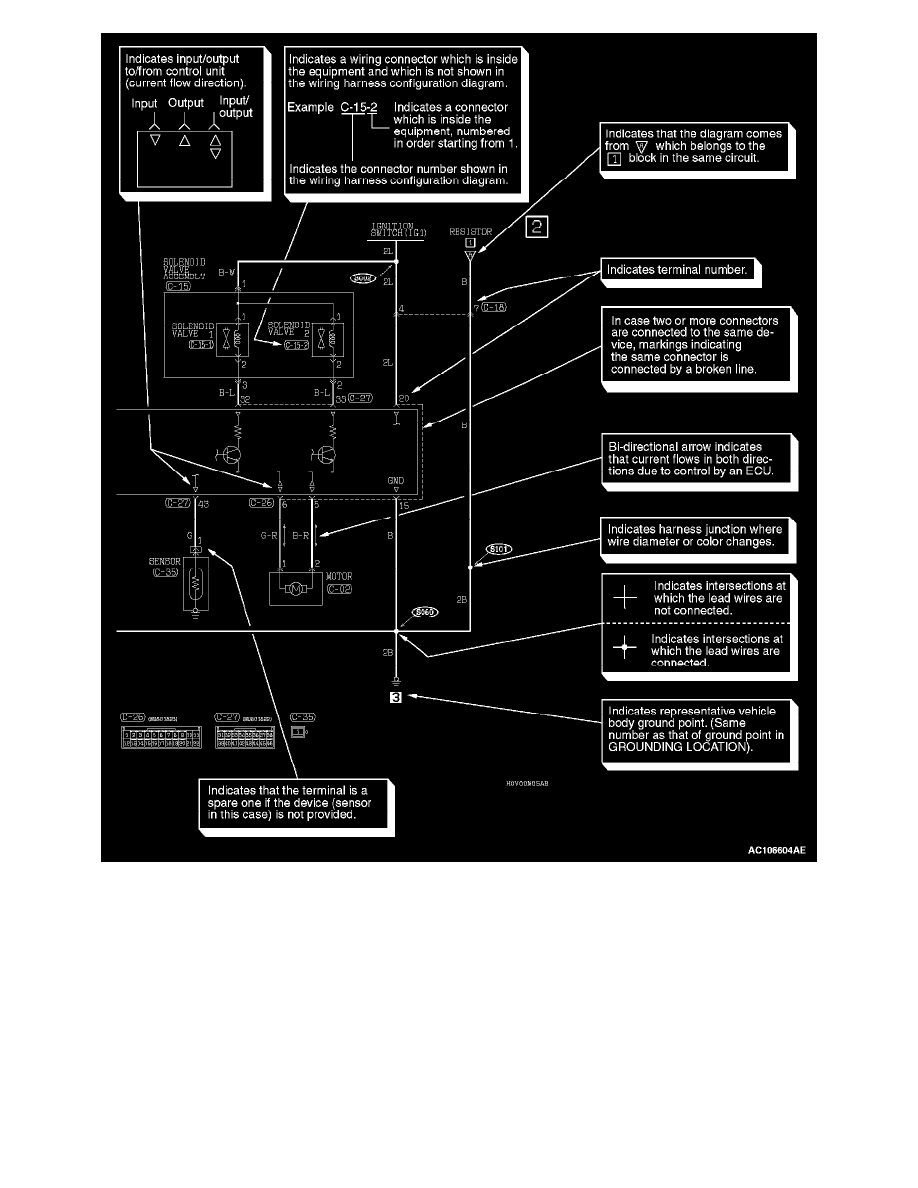

How To Read Circuit Diagrams Part 1

Transmission and Drivetrain
Transmission Control Systems / Actuators and Solenoids - Transmission and Drivetrain / Actuators and Solenoids - A/T / Shift Solenoid, A/T / Component Information
Diagrams
Diagram Information and Instructions
