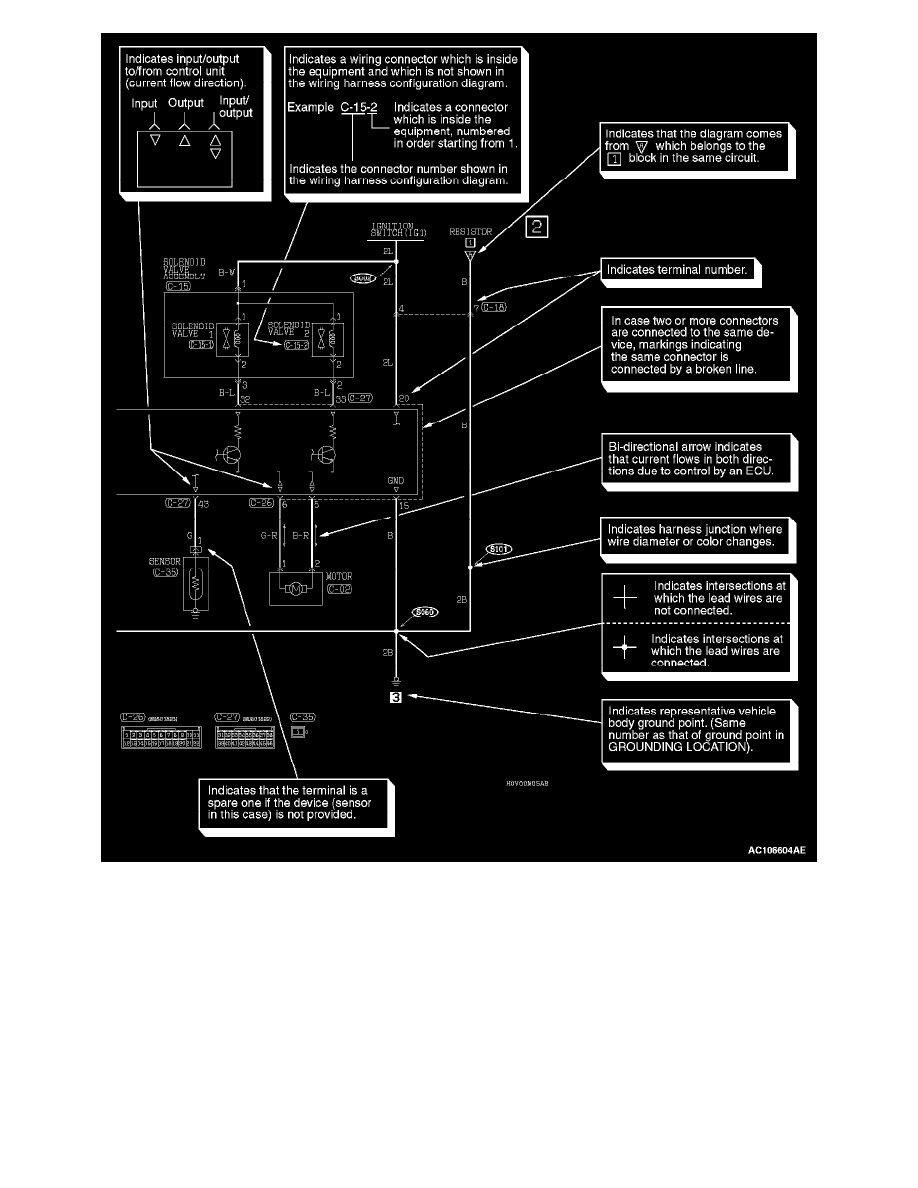

How To Read Circuit Diagrams Part 2

Wiper and Washer Systems
Windshield Washer Relay / Diagrams / Diagram Information and Instructions
Page 7995
