Eclipse Spyder GS-T FWD L4-1997cc 2.0L DOHC Turbo MFI (1997)
Dimmer Switch: Testing and Inspection
Rheostat
Inspection

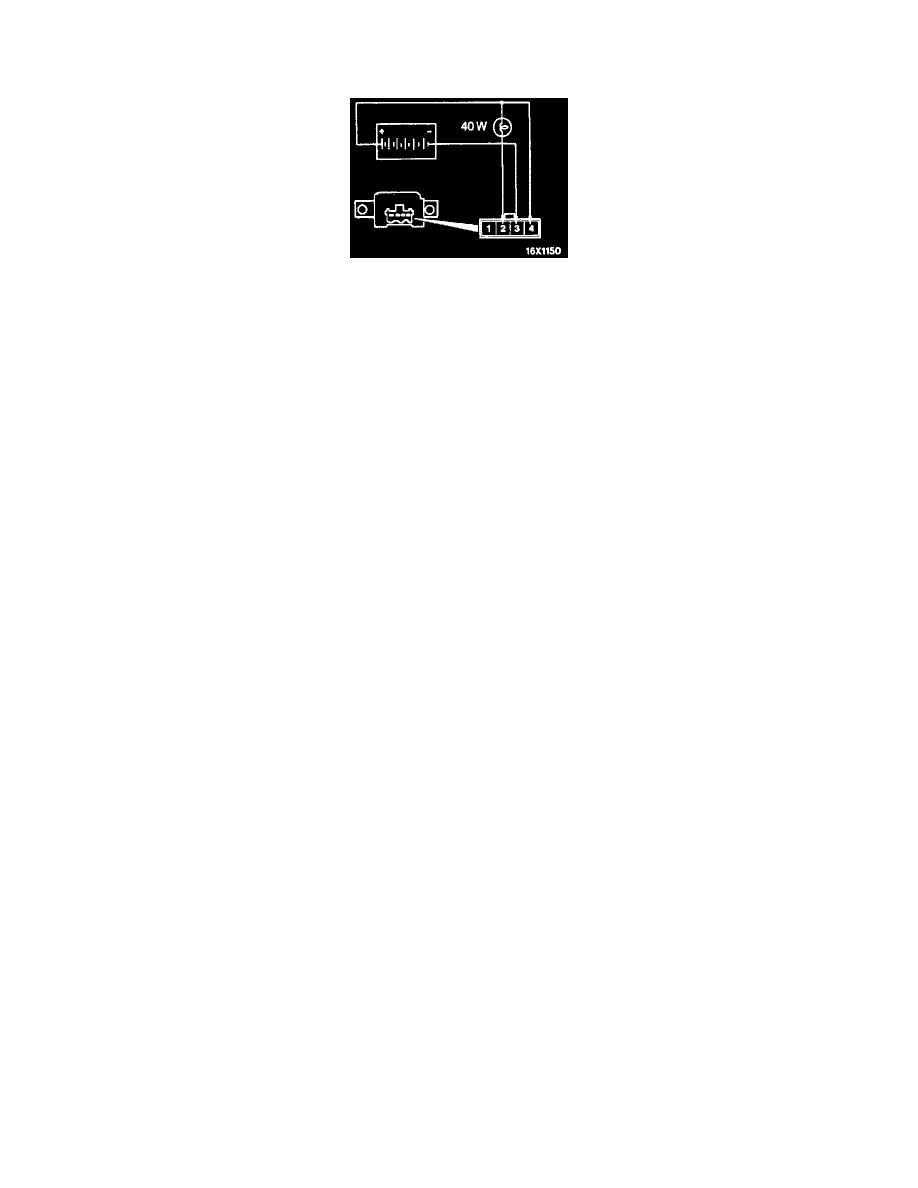

1. Connect the battery and the test light (40 W) as shown in the illustration.
2. Operate the rheostat, and if the brightness changes smoothly without switching off, then the rheostat function is normal.
