Page 2

background image

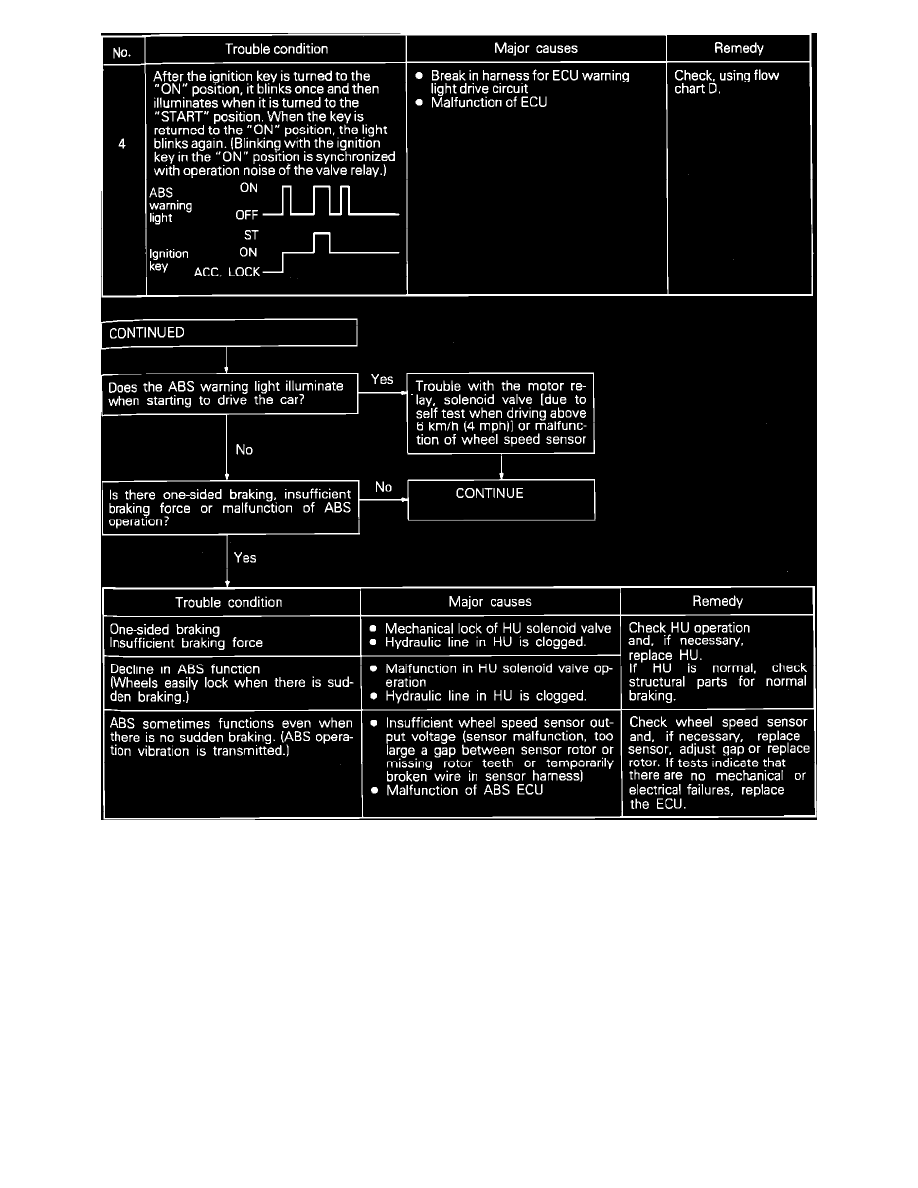

Fig. 23 Diagnostic Procedure Charts (Part 2 Of 3)

Brakes and Traction Control
Antilock Brakes / Traction Control Systems / ABS Light / Testing and Inspection / Diagnostic Procedure Charts
Page 4506
