Galant L4-1997cc 2.0L SOHC 16 Valve (1993)
Sensors and Switches
Sensors and Switches - Powertrain Management / Sensors and Switches - Computers and Control Systems
Oxygen Sensor / Component Information
Diagrams / Diagram Information and Instructions
Page 950
Page 3

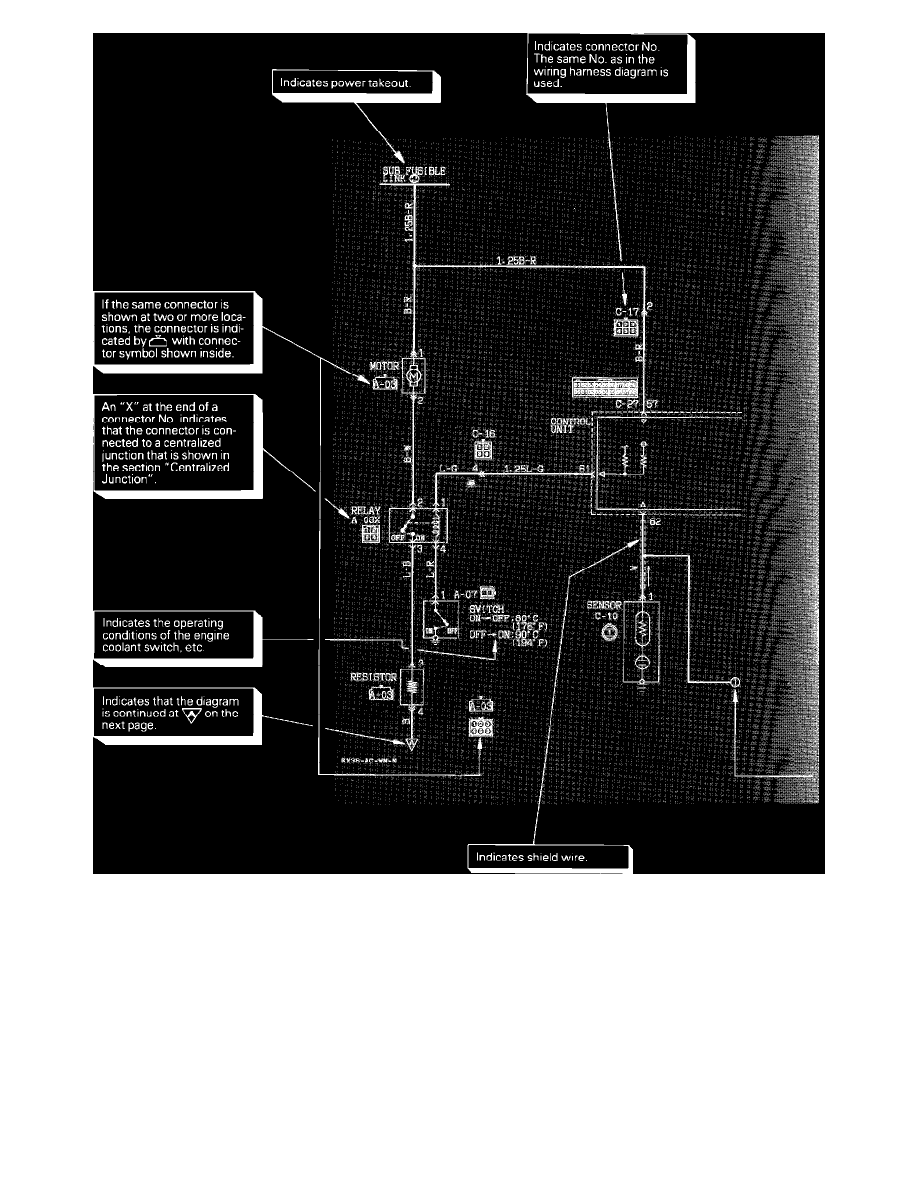

How To Read Electrical Diagrams (Part 1 of 2)
Sensors and Switches
Sensors and Switches - Powertrain Management / Sensors and Switches - Computers and Control Systems
Oxygen Sensor / Component Information
Diagrams / Diagram Information and Instructions
Page 950
