Galant L4-1997cc 2.0L SOHC 16 Valve (1993)

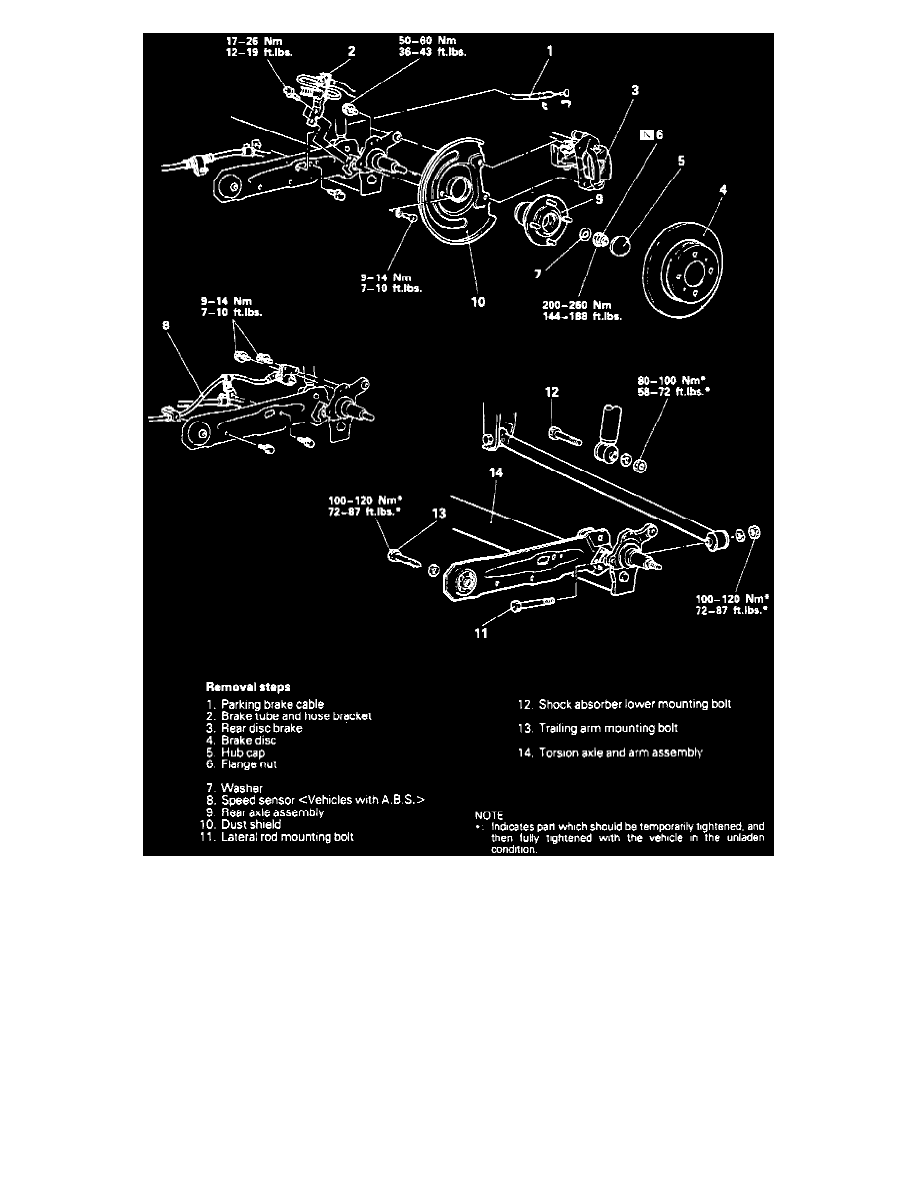

Fig. 18 Torsion Bar & Trailing Arm Assembly Replacement With Disc Brakes
2. Remove torsion axle and arm assembly in numbered sequence shown in Fig. 17 and 18, noting the following:
a. Raise up torsion axle and arm assembly. Insert a wooden block between the jack and axle beam, do not allow jack to contact lateral rod.
b. Remove shock absorber mounting bolts and trailing arm mounting bolts.
c. Lower jack slowly, then remove torsion axle and arm assembly.
3. Reverse procedure to install, noting the following:
