Removal and Replacement|Page 4332 > < Clutch Slave Cylinder|Diagrams|Type 1|Page 4329

Galant L4-1997cc 2.0L SOHC 16 Valve (1993)

Page 1
background image

Clutch Slave Cylinder: Removal and Replacement

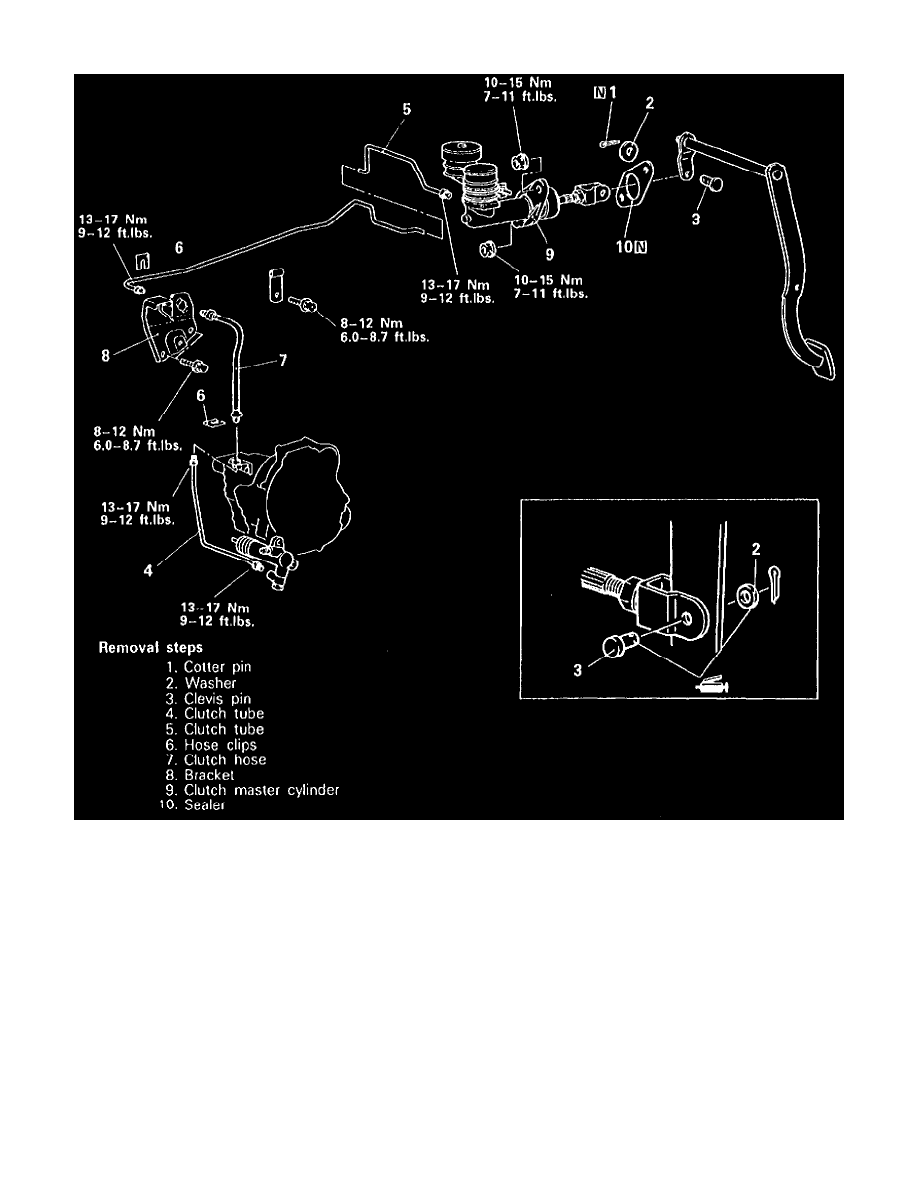

Fig. 8  Exploded View Of Clutch Control System
