Windshield Washer Switch: Testing and Inspection

1. Remove steering column undercover.

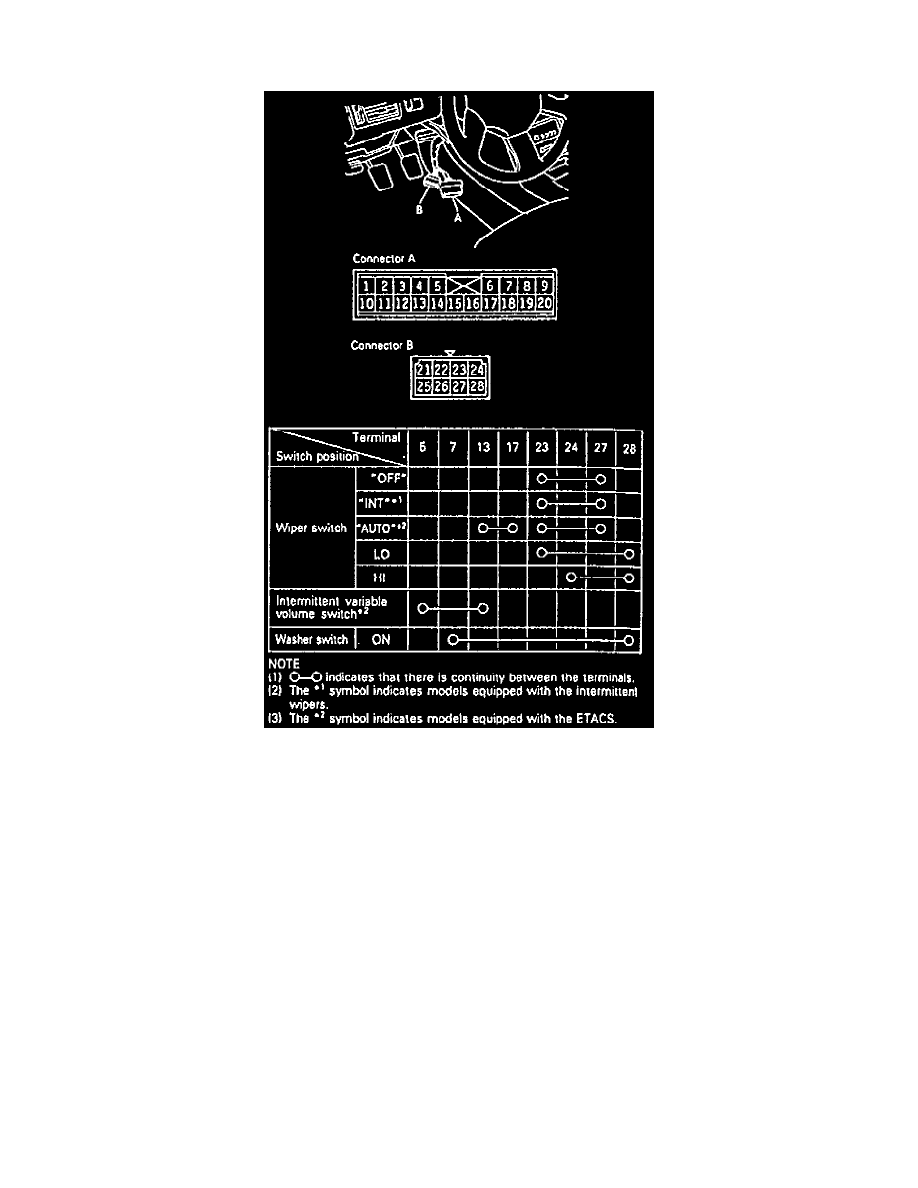

Fig. 25  Wiper & Washer Switch Continuity Chart

2. Disconnect column switch connector and check continuity at terminals as shown in Fig. 25.
3. If results are not as specified, replace switch.
