Lancer L4-2.0L (4B11) (2008)
/Page-348001.png)
Camshaft Bearing: Specifications
FRONT CAMSHAFT BEARING CAP

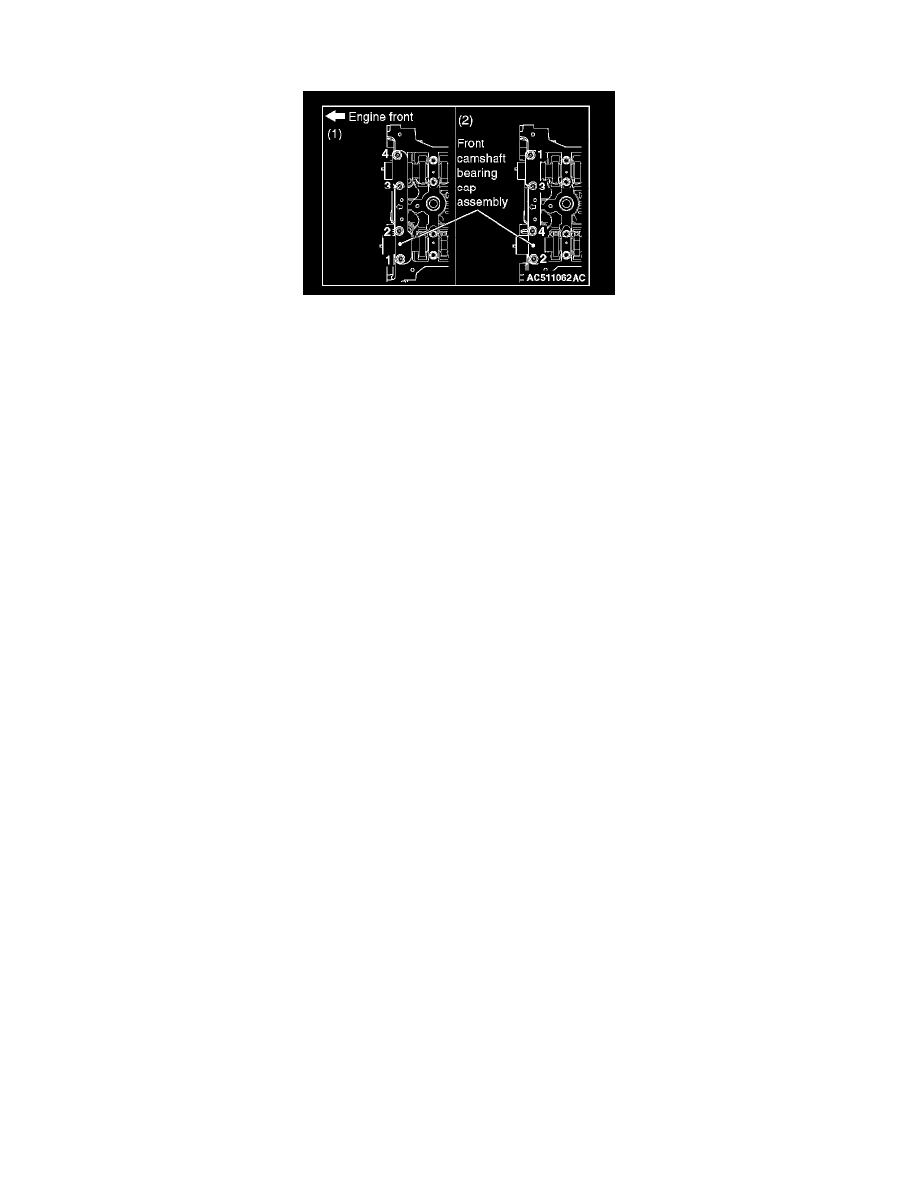

Install the front camshaft bearing cap to the cylinder head, and temporarily tighten the camshaft bearing front cap to the specified torque in the order
of the figure (1).
Tightening torque ................................................................................................................................................................. 17 ± 3 Nm (13 ± 2 ft-lb)
Tighten the front camshaft bearing cap again to the specified torque in the order of the figure (2).
Tightening torque ................................................................................................................................................................. 30 ± 2 Nm (22 ± 1 ft-lb)
