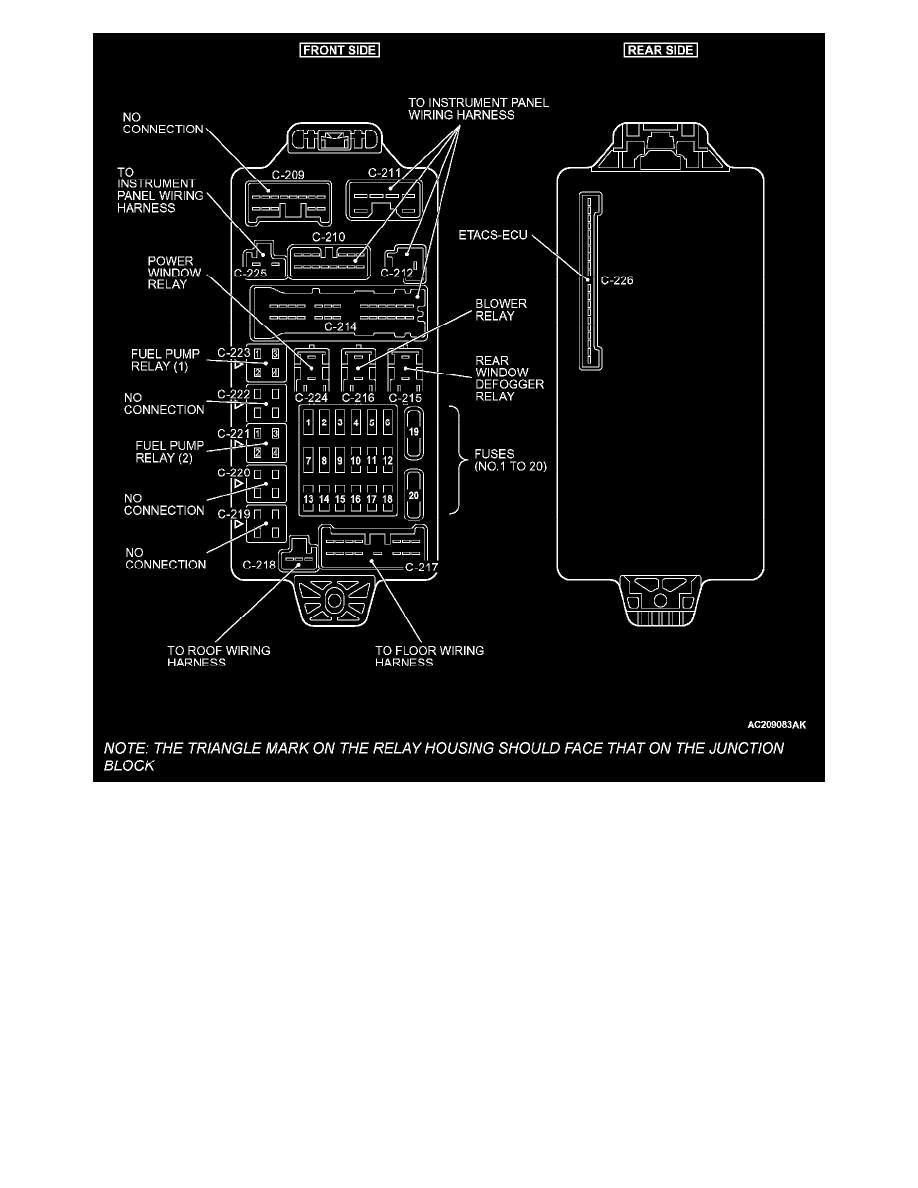

Junction Block

Starting and Charging
Power and Ground Distribution
Fuse Block
Component Information
Locations
