Lancer L4-2.4L (4B12) (2009)

  • Body and Frame
  • Splash Guard
  • Component Information
  • Service and Repair
  • Under Cover

Page 1
background image

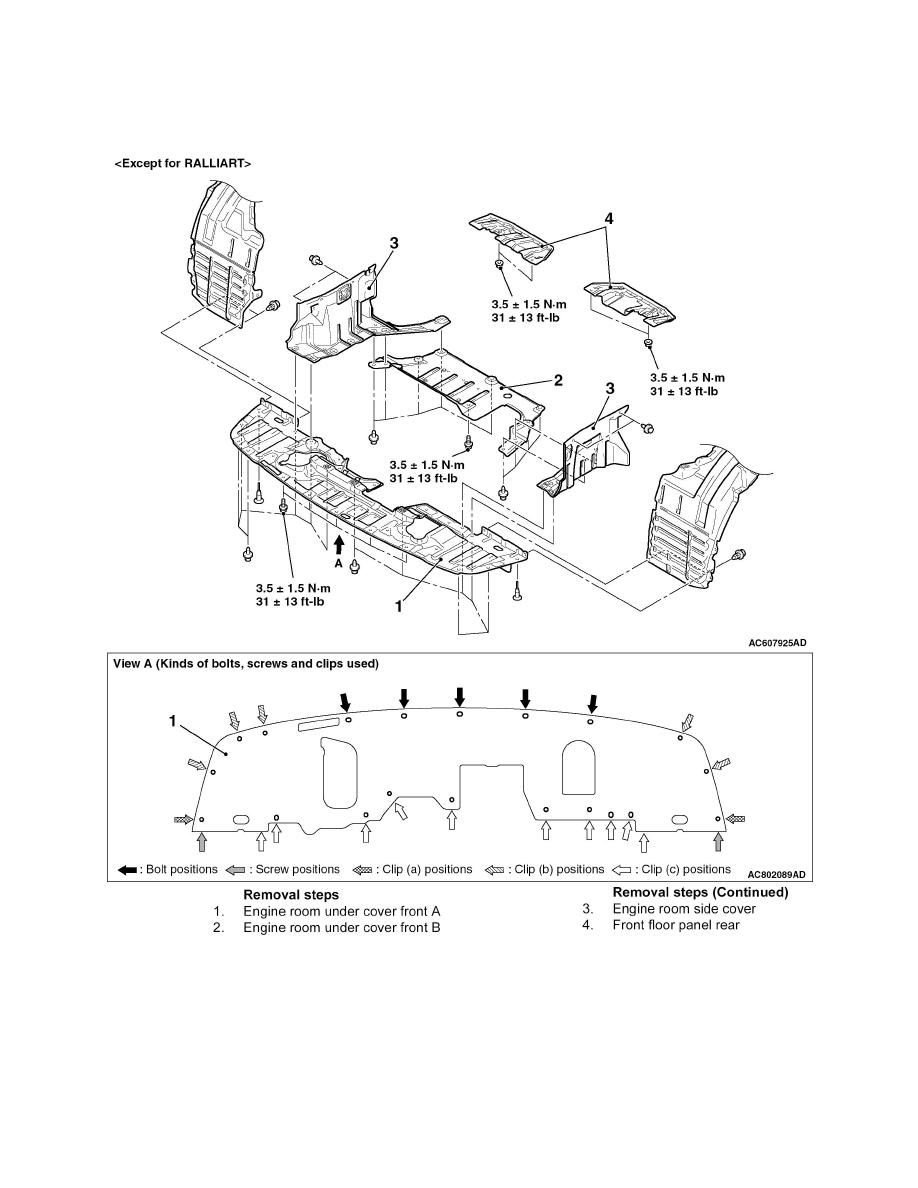

Splash Guard: Service and Repair
Under Cover

UNDER COVER

REMOVAL AND INSTALLATION

Removal Steps 1-4
