Lancer L4-2.4L (4B12) (2009)

  • Powertrain Management
  • Sensors and Switches - Powertrain Management
  • Sensors and Switches - Computers and Control Systems
  • Accelerator Pedal Position Sensor
  • Component Information
  • Locations

Page 1
background image

Accelerator Pedal Position Sensor: Locations

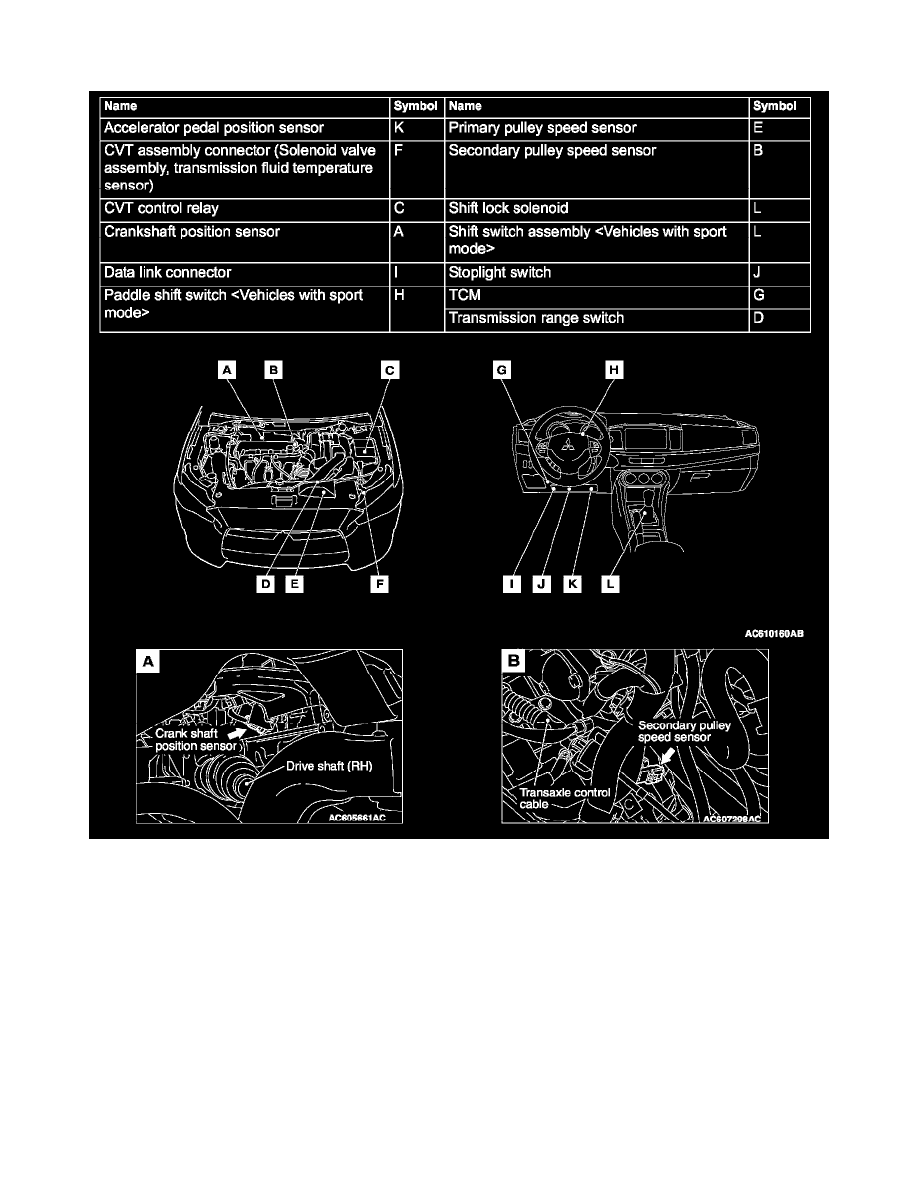

CVT CONTROL COMPONENT LAYOUT
