Lancer L4-2.4L (4B12) (2009)
/Page-839001.png)

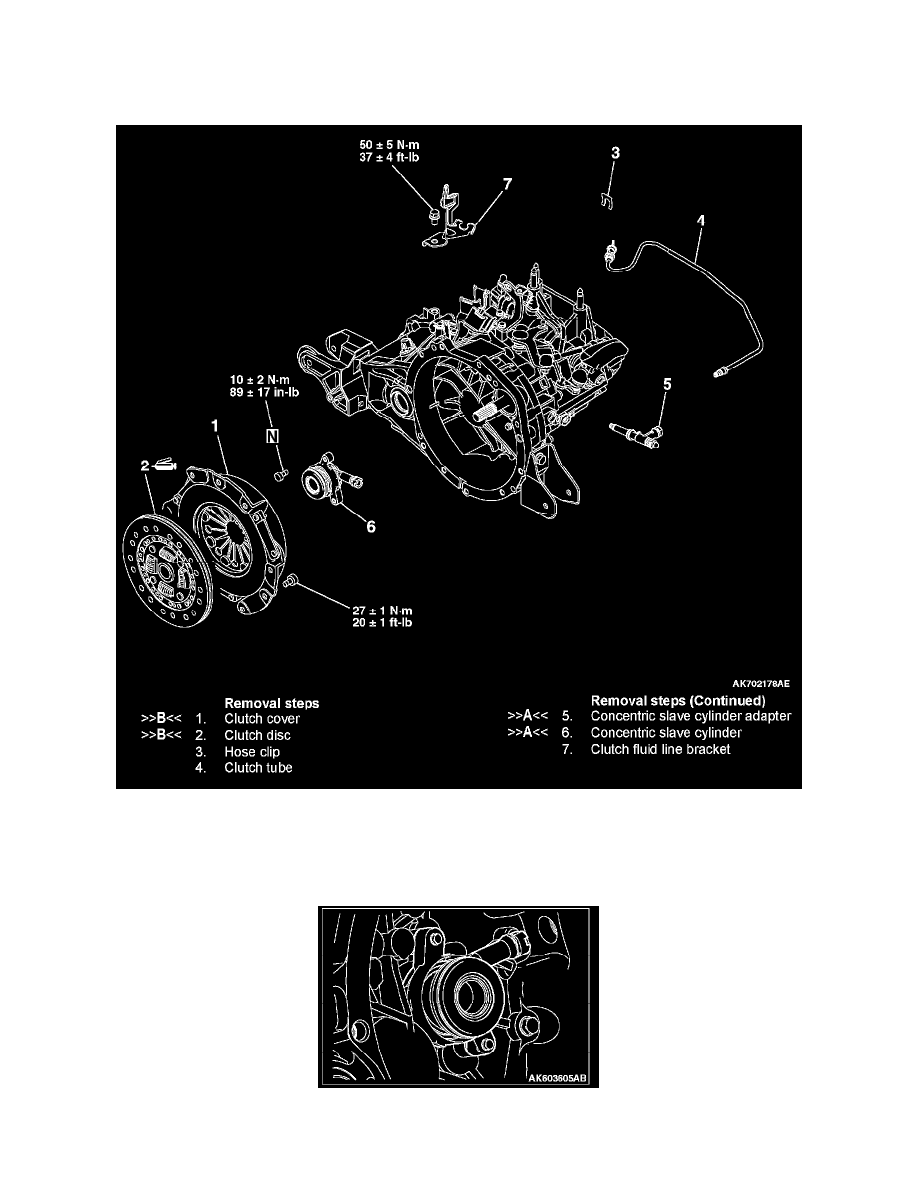

Clutch Disc: Service and Repair
CLUTCH
REMOVAL AND INSTALLATION
Removal Steps 1-7
INSTALLATION SERVICE POINTS
]]A[[ CONCENTRIC SLAVE CYLINDER/CONCENTRIC SLAVE CYLINDER ADAPTER INSTALLATION
1. After setting the concentric slave cylinder to the transaxle case, tighten the flange bolt temporally.
