Lancer L4-2.4L SOHC (2005)
Heater Core: Service and Repair
Removal and Installation

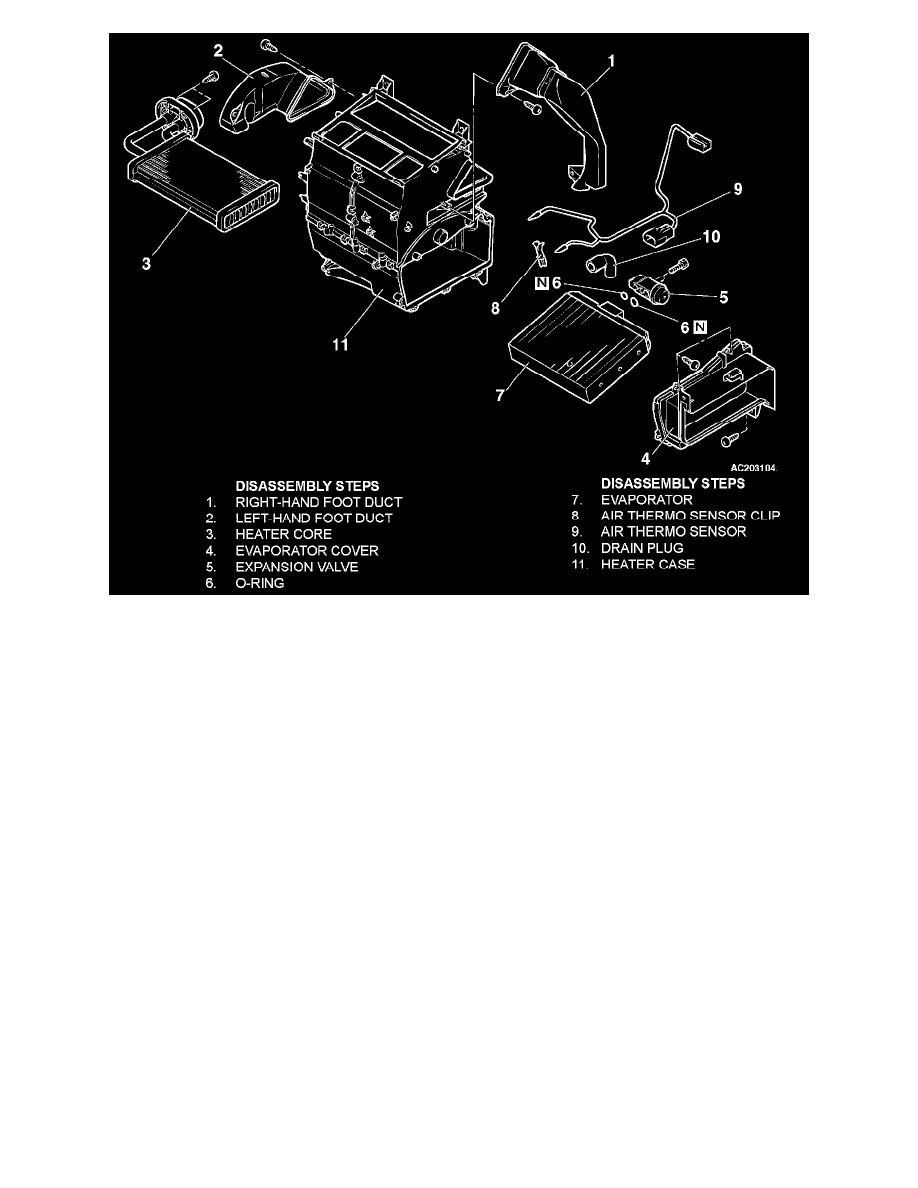

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND EVAPORATOR UNIT
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<<A>> FLEXIBLE SUCTION HOSE AND LIQUID PIPE B DISCONNECTION
CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to hose and nipples To prevent the entry of
dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.
