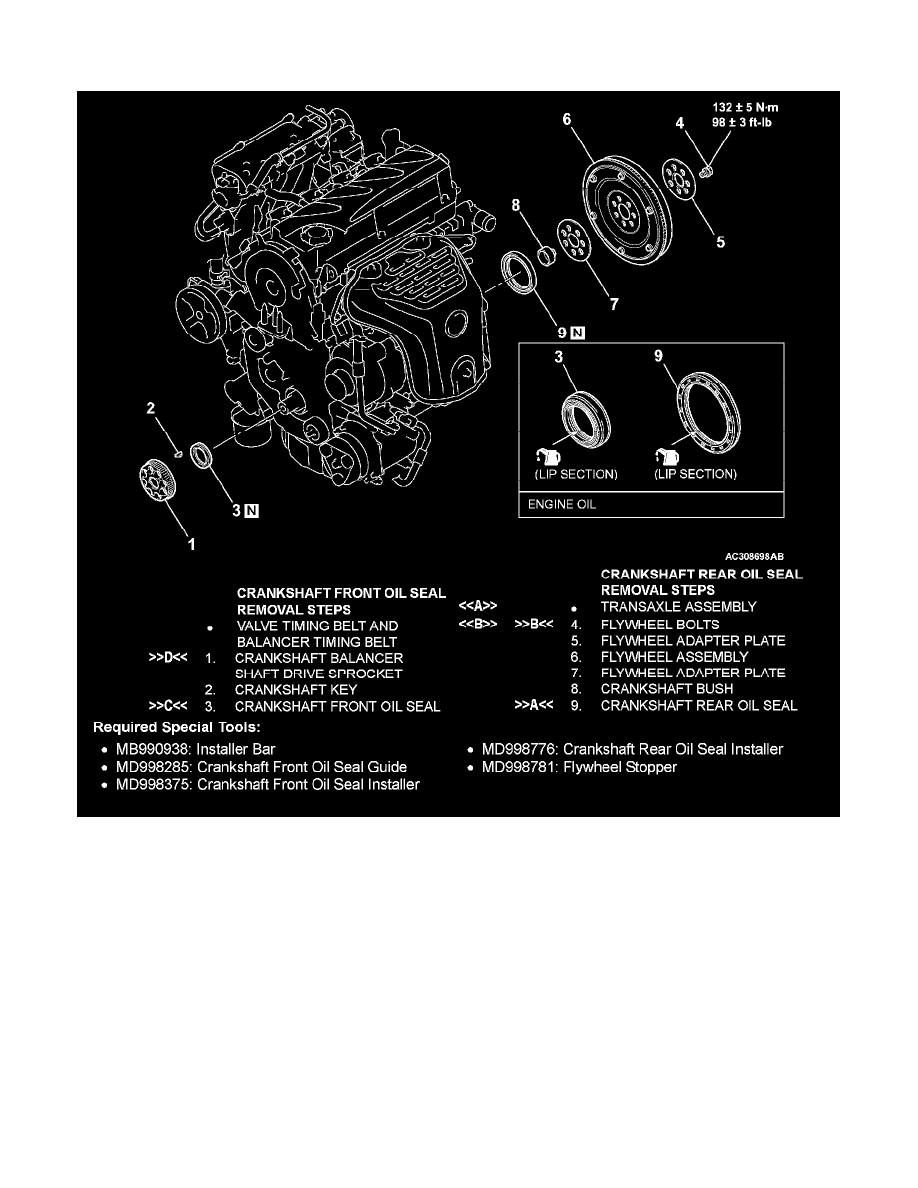

Front Crankshaft Seal: Diagrams

CRANKSHAFT OIL SEAL REPLACEMENT W/ RELATED COMPONENTS

<M/T>

Engine, Cooling and Exhaust
Engine
Seals and Gaskets, Engine
Front Crankshaft Seal
Component Information
Diagrams
