Lancer L4-2.4L SOHC (2005)
CAUTION: Do not use alcohol or methanol anti-freeze or any engine coolants mixed with alcohol or methanol anti-freeze. The use of an
improper anti-freeze can cause corrosion of the aluminum components.

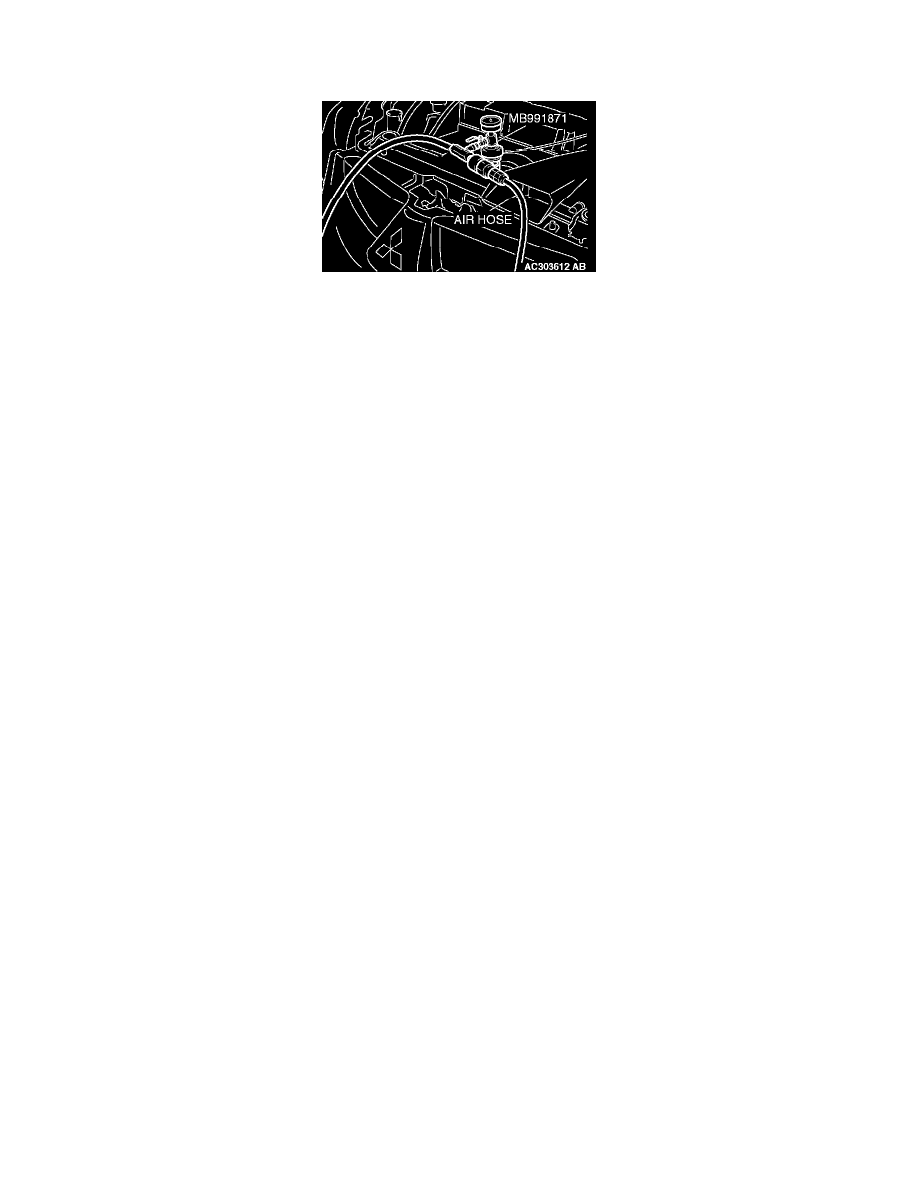

10. By referring to the section on coolant, select an appropriate concentration for safe operating temperature within the range of 30 to 60%. Use
special tool MB991871 to refill the coolant. A convenient mixture is a 50% water and 50% antifreeze solution [freezing point: -31°C (-32.8°F)].
Recommended antifreeze: Long Life Antifreeze Coolant or an equivalent
Quantity:
<2.0L Engine> 6.0 dm3 (6.3 quarts)
<2.4L Engine> 7.0 dm3 (7.4 quarts)
NOTE: For how to use special tool MB991871, refer to its manufacturer's instructions.
11. Reinstall the radiator cap.
12. Start the engine and let it warm up until the thermostat opens.
13. After repeatedly revving the engine up to 3,000 r/min several times, then stop the engine.
14. Remove the radiator cap after the engine has become cold, and pour in coolant up to the brim. Reinstall the cap.
CAUTION: Do not overfill the reserve tank.
15. Add coolant to the reserve tank between the FULL and LOW mark if necessary.
