Lancer L4-2.4L SOHC (2005)
released. If not released, the rear wheels should be placed on a tow dolly.

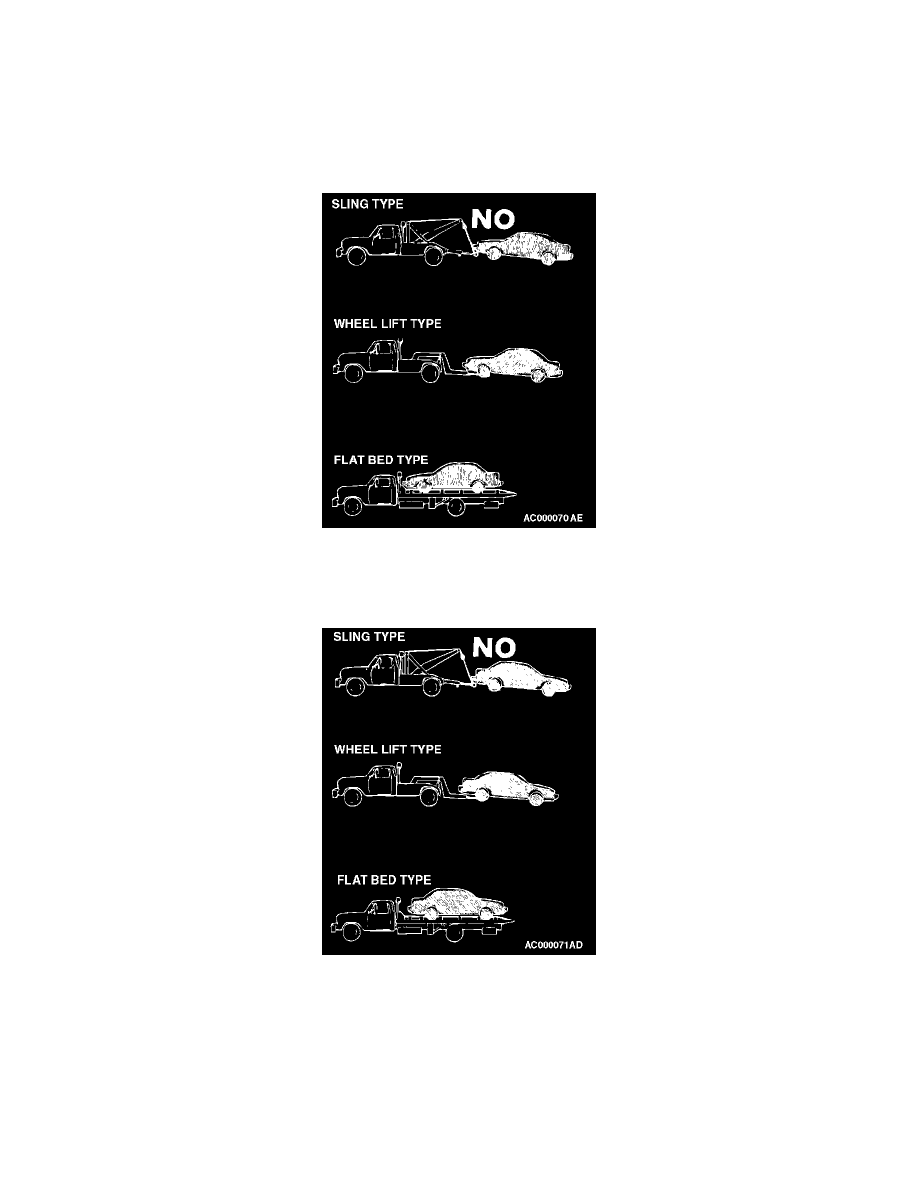

SAFETY PRECAUTIONS
The following precautions should be taken when towing the vehicle:
1. DO NOT LIFT OR TOW THE VEHICLE BY ATTACHING TO OR WRAPPING AROUND THE BUMPER.
2. Any loose, protruding, or damaged parts such as hoods, doors, fenders, trim, etc. should be secured or removed prior to moving the vehicle.
3. Refrain from going under a vehicle when it is lifted by the towing equipment, unless the vehicle is adequately supported by safety stands.
4. Never allow passengers to ride in a towed vehicle.
5. State and local rules and regulations must be followed when towing a vehicle.
LIFTING, JACKING SUPPORT LOCATION
CAUTION: Do not support the vehicles at locations other than specified supporting points. Doing so will cause damage, etc.
FLOOR JACK
CAUTION: Never support any point other than the specified one, or that point will be deformed.
AXLE STANDS AND A SINGLE-POST LIFT OR DOUBLE-POST LIFT
CAUTION:
-
If rubber attachments with grooves that are too thick are used at the front support positions, the front fender may become bent, so be sure to use
rubber attachments with groove thicknesses of 18 mm (0.71 inch) or less.
-
If attachments which are not high enough are used, they may damage areas such as the side step. Be sure to use attachments which are high
enough, or remove the side step if not using attachments.
