Lancer Evolution L4-2.0L DOHC Turbo (2003)
Drive/Propeller Shaft: Removal and Replacement

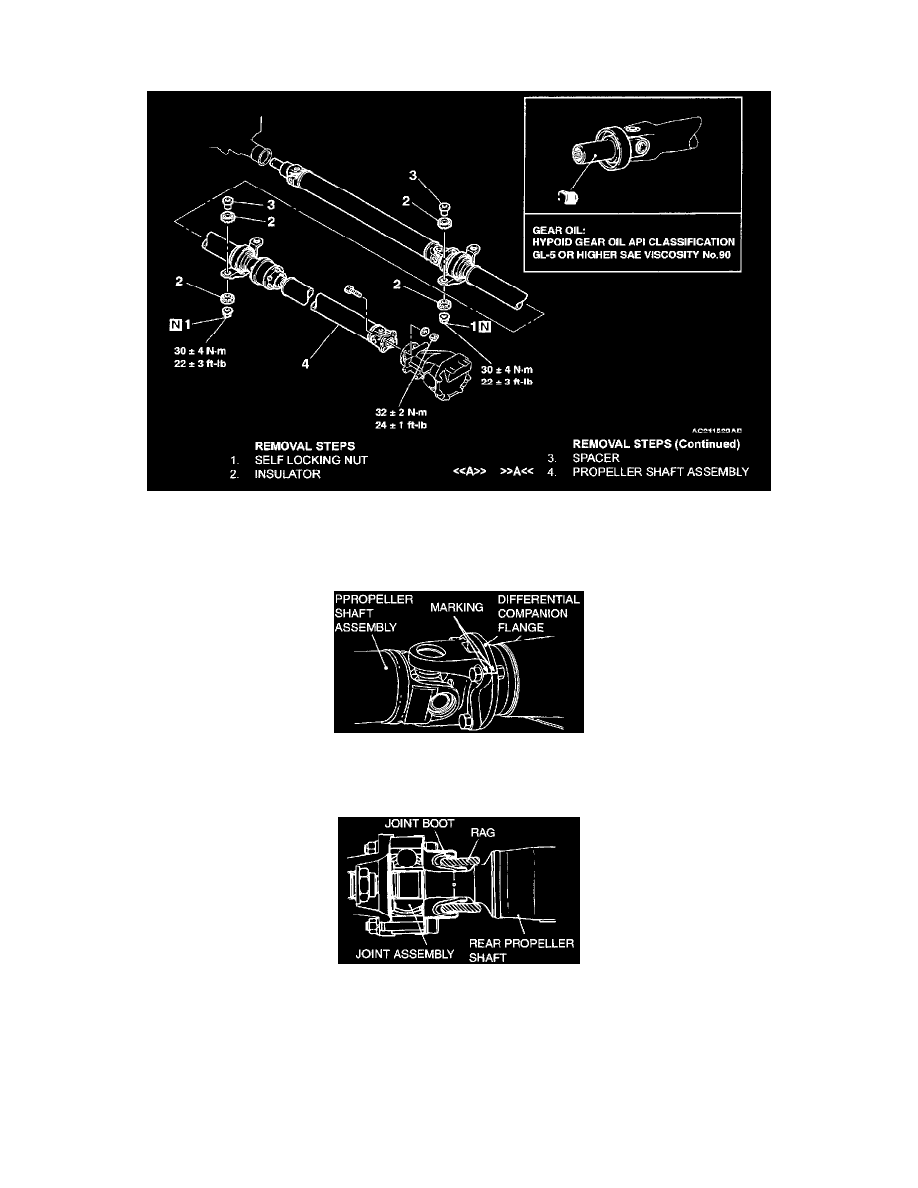

PROPELLER SHAFT
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<<A>> PROPELLER SHAFT ASSEMBLY REMOVAL
1. Make mating marks on the differential companion flange and the propeller shaft assembly.
CAUTION: Be careful not to bend the joint portion when removing the propeller shaft because this will damage to the joint boot.
2. Insert a rag so as to avoid boot damage, and remove the propeller shaft assembly in a straight and level manner
INSTALLATION SERVICE POINT
>>A<< PROPELLER SHAFT ASSEMBLY INSTALLATION
