Cruise Control: Diagrams (page 2 of 3)
- Make
- Mitsubishi
- Model
- Lancer Sportback
- Engine
- L4-2.4L (4B12)
- Year
- 2010
Cruise ControlDiagrams · page 2 of 3
/Page-1419001.png)
Cruise Control: Description and Operation
GENERAL INFORMATION
By using the cruise control system, the driver can drive at preferred speeds in a range of approximately 40 to 200 km/h (25 to 125 mph) without
depressing the accelerator pedal.
For this cruise control system, in conjunction with the electronic throttle valve control system, the engine control module (ECM) electronically controls
the throttle valve.

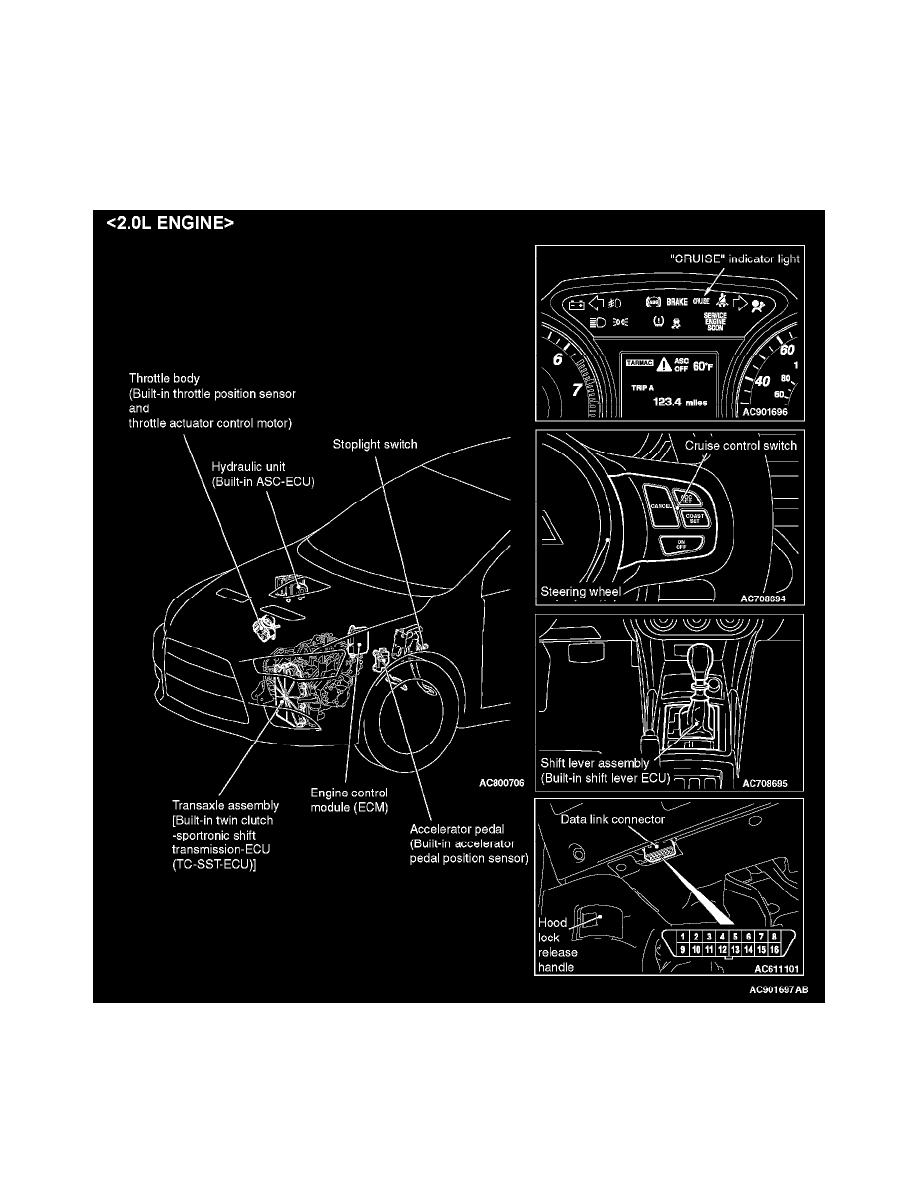

CONSTRUCTION DIAGRAM
Construction Diagram
