Timing Belt: Specifications (page 5 of 11)
- Make
- Mitsubishi
- Model
- Montero
- Engine
- V6-3.8L SOHC
- Year
- 2005
- Section
- Timing Belt
MaintenanceSpecifications · page 5 of 11
Part 2 Of 2
REMOVAL AND INSTALLATION
Required Special Tools:
^
MB991800: Pulley Holder MD991802: Pin B
^
MD998767: Tension Pulley Socket Wrench
^
MD998769: Crankshaft Pulley Spacer

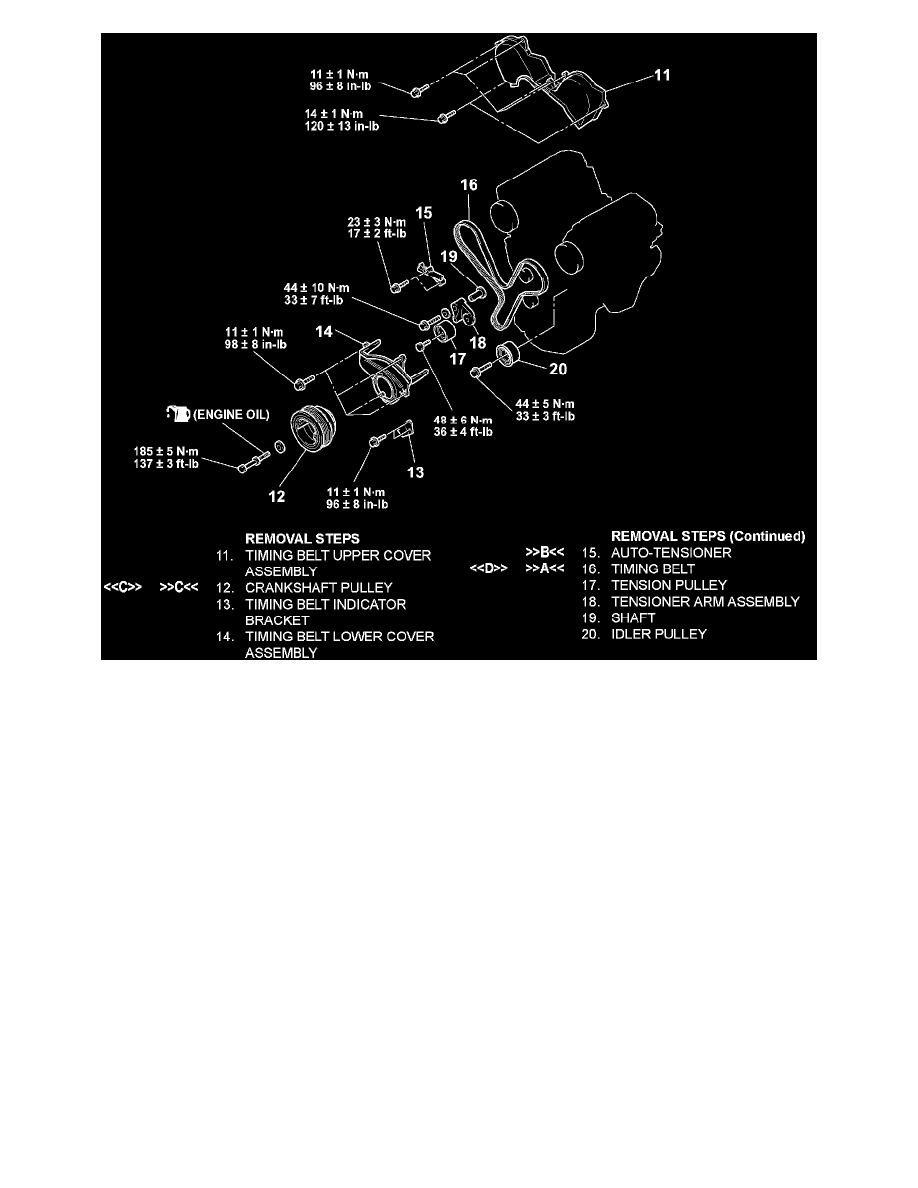

REMOVAL SERVICE POINTS
<<A>> DRIVE BELT AUTO TENSIONER REMOVAL
The following operations will be needed due to the introduction of the serpentine drive system with the drive belt auto tensioner.
