Montero LS 4WD V6-3.5L SOHC (1997)
Control Module: Testing and Inspection

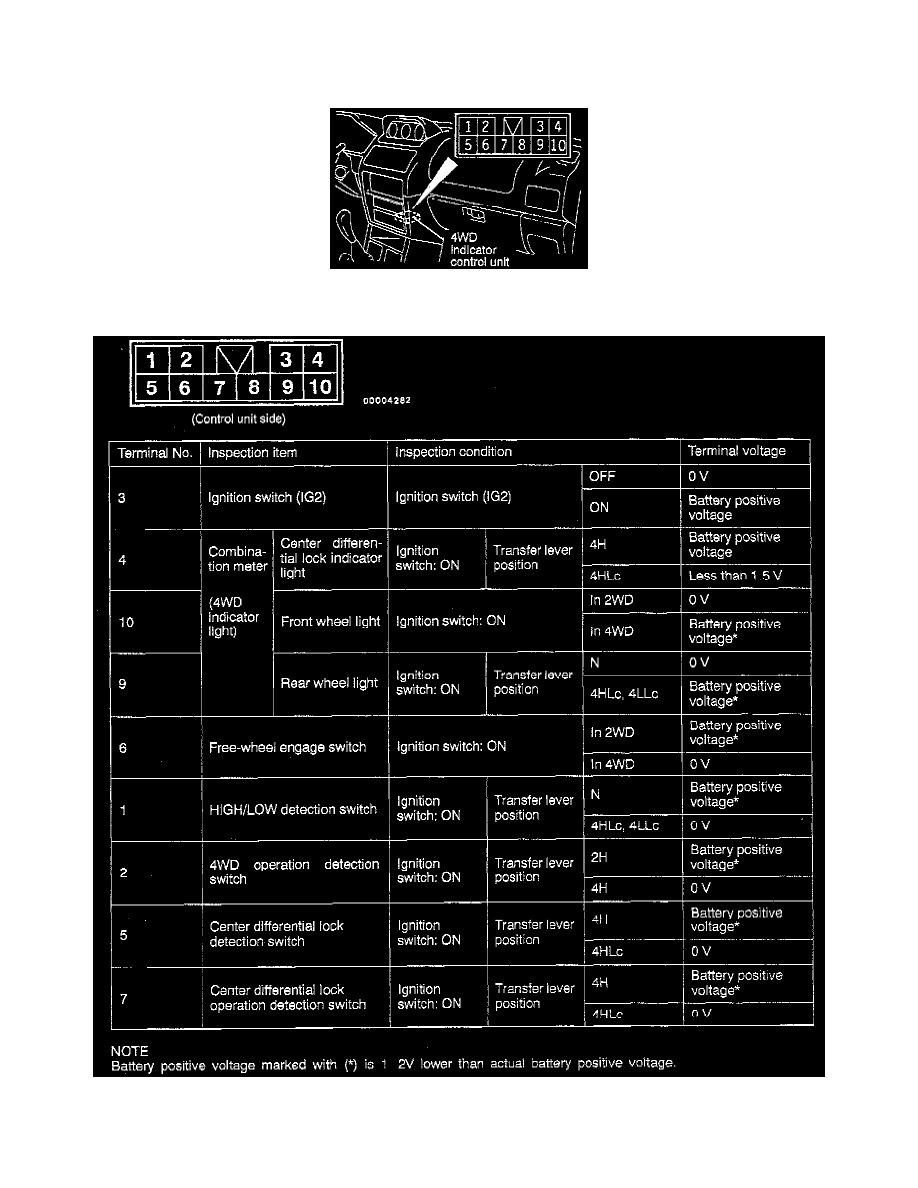

INSPECTION
1. Remove the radio or CD player.
2. Remove the 4WD indicator control unit.
3. Measure the voltage at the terminals under each condition.
4. Carry out the voltage measurements with the harness disconnected from the control unit. Insert the probe from the rear of the connector and take
the measurement between terminal (8) (earth terminal) and the respective terminals.
