Condenser Fan: Testing and Inspection
Component Inspection Procedures

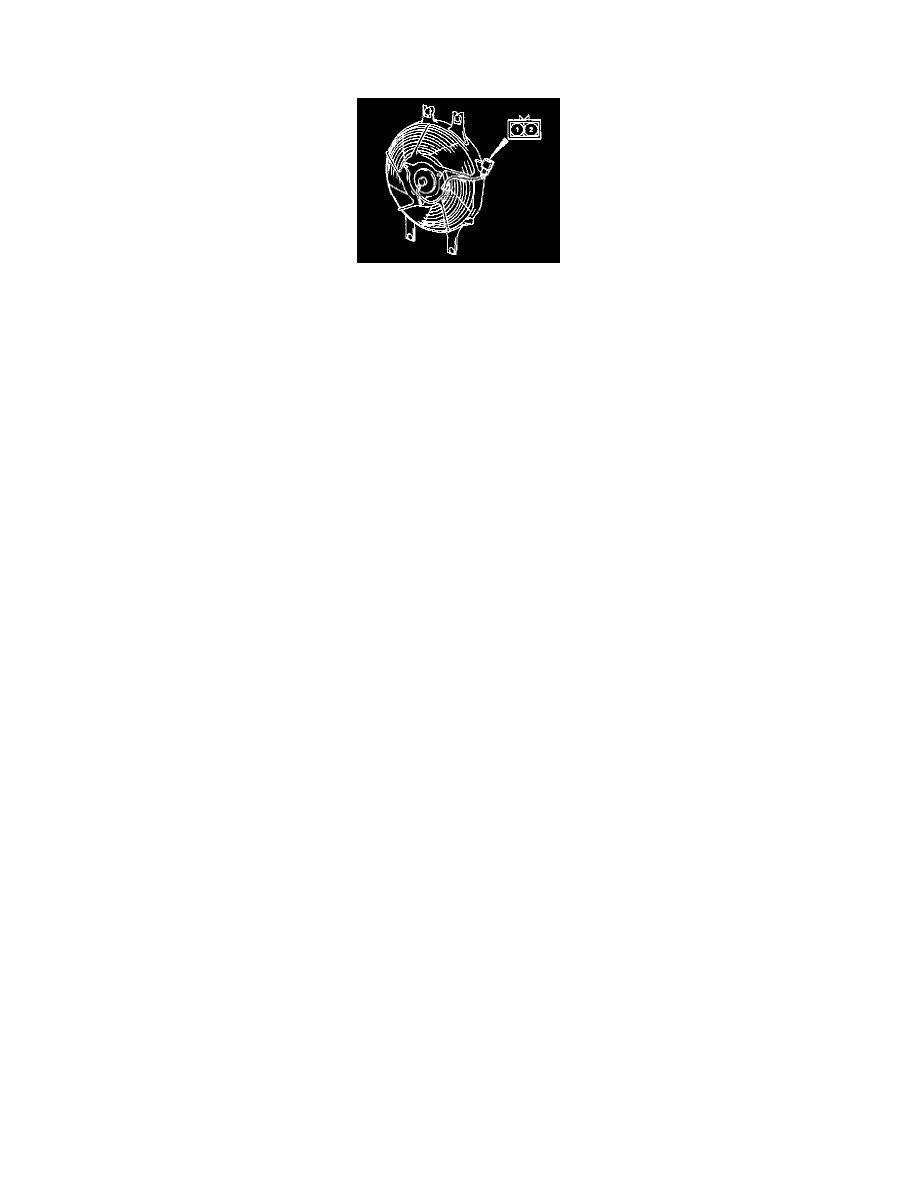

CONDENSER FAN MOTOR CHECK

Check to be sure that the condenser fan motor operates when battery voltage is applied to terminal 1 and terminal 2 grounded.
