ABS Main Relay: Locations

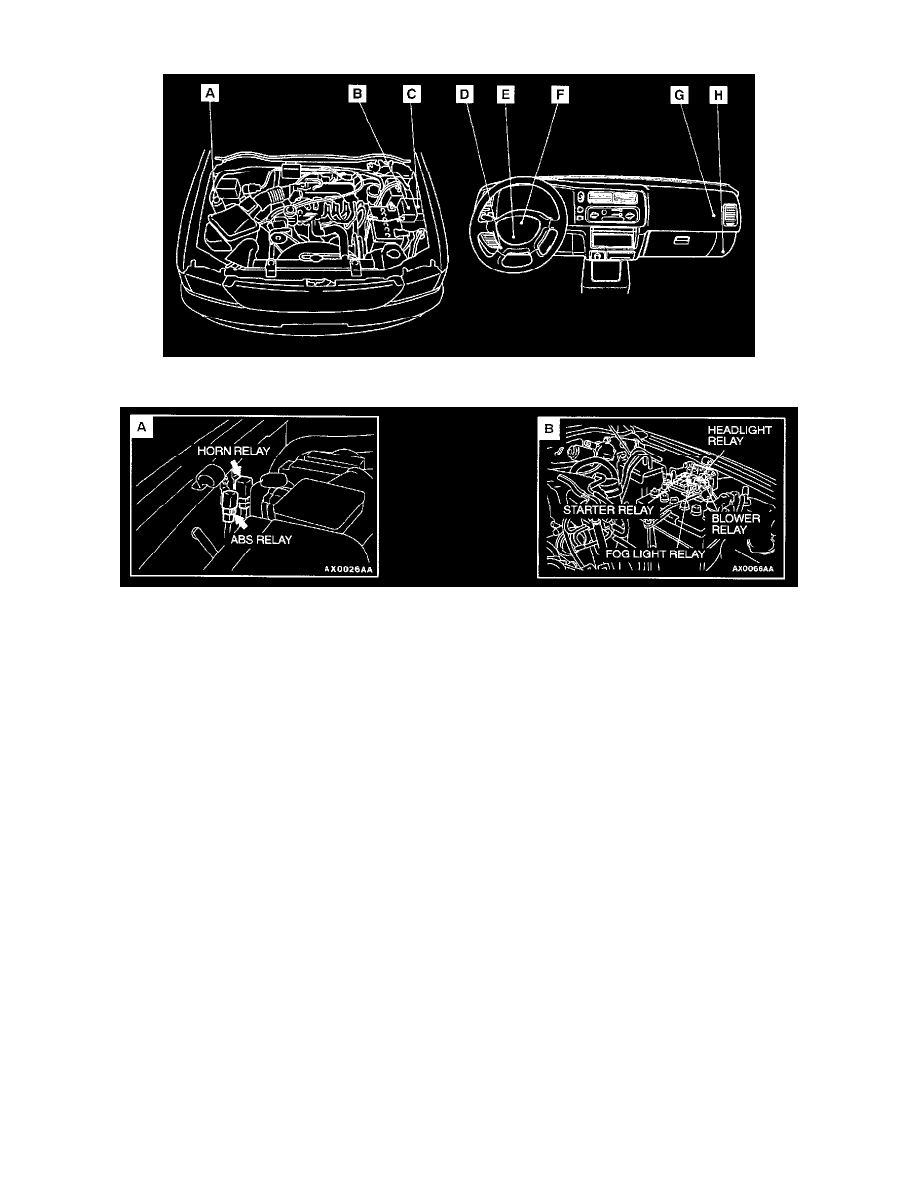

Relay Locations Overall View

Relay Location View A - B

NAME

SYMBOL

ABS Relay

A
