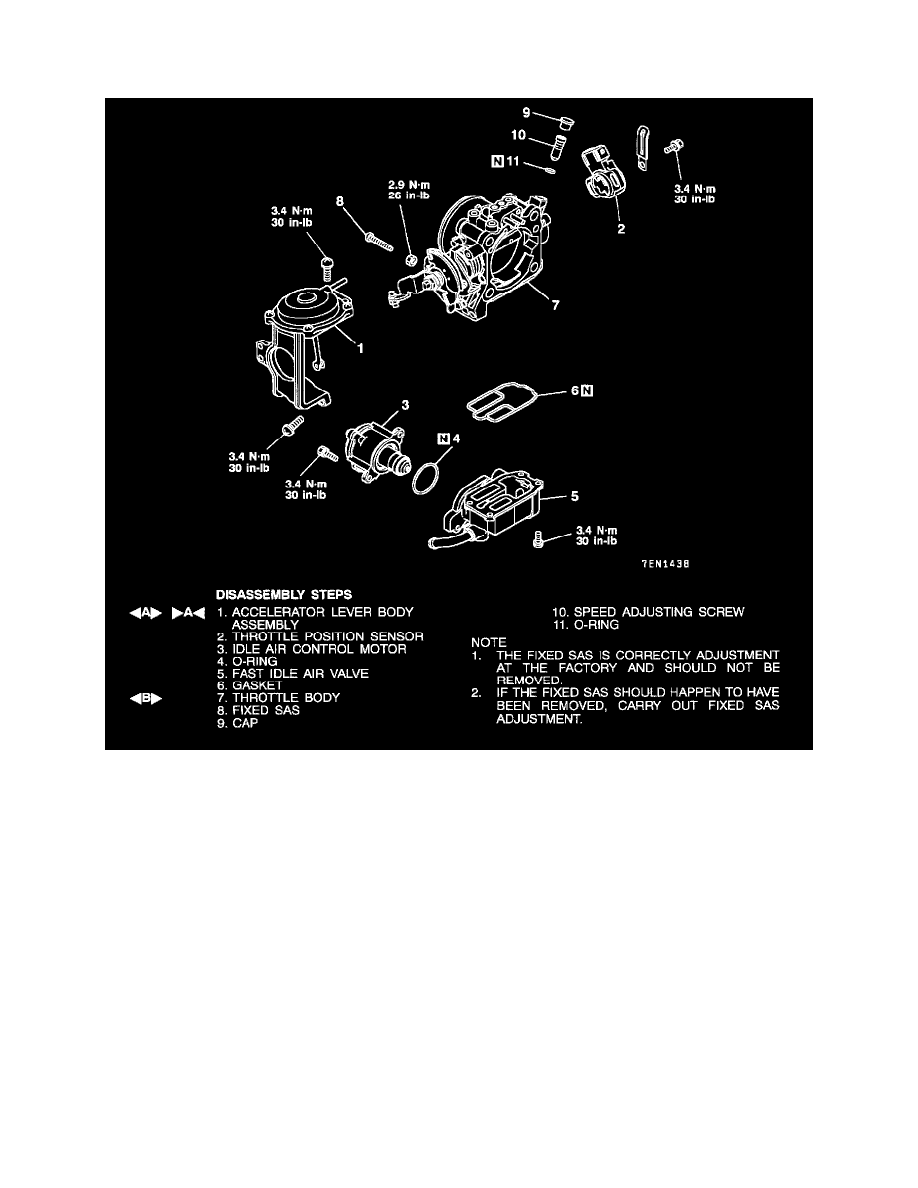

Throttle Body: Service and Repair
Disassembly and Assembly

Powertrain Management
Fuel Delivery and Air Induction
Throttle Body
Component Information
Service and Repair
Disassembly and Assembly
