Montero Sport Output Shaft Repair
Output Shaft: Service and Repair

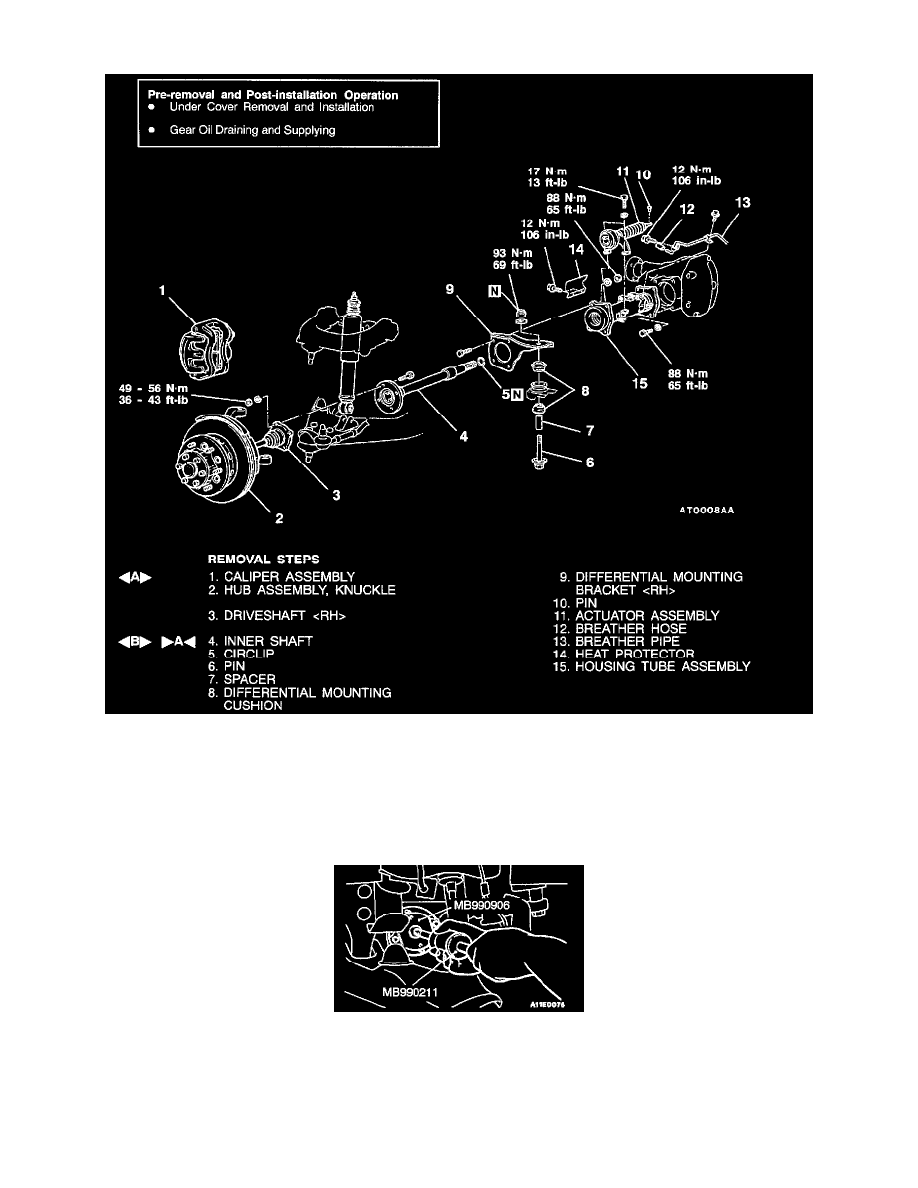

REMOVAL AND INSTALLATION
Removal Service Points
<A> Caliper Assembly Removal
Secure the removed caliper assembly with wire to prevent it from falling.
<B> Inner Shaft Removal
CAUTION: When pulling the inner shaft out from the front differential carrier, be careful that the spline part of the inner shaft does not damage
the oil seal.
Attach the special tools M13990906, MB990211 to the flange of the shaft, and pull the inner shaft out from the front differential carrier.
Installation Service Point
>A< Shaft Installation
