Outlander 2WD V6-3.0L (6B31) (2007)
/Page-942001.png)
Shift Linkage: Service and Repair

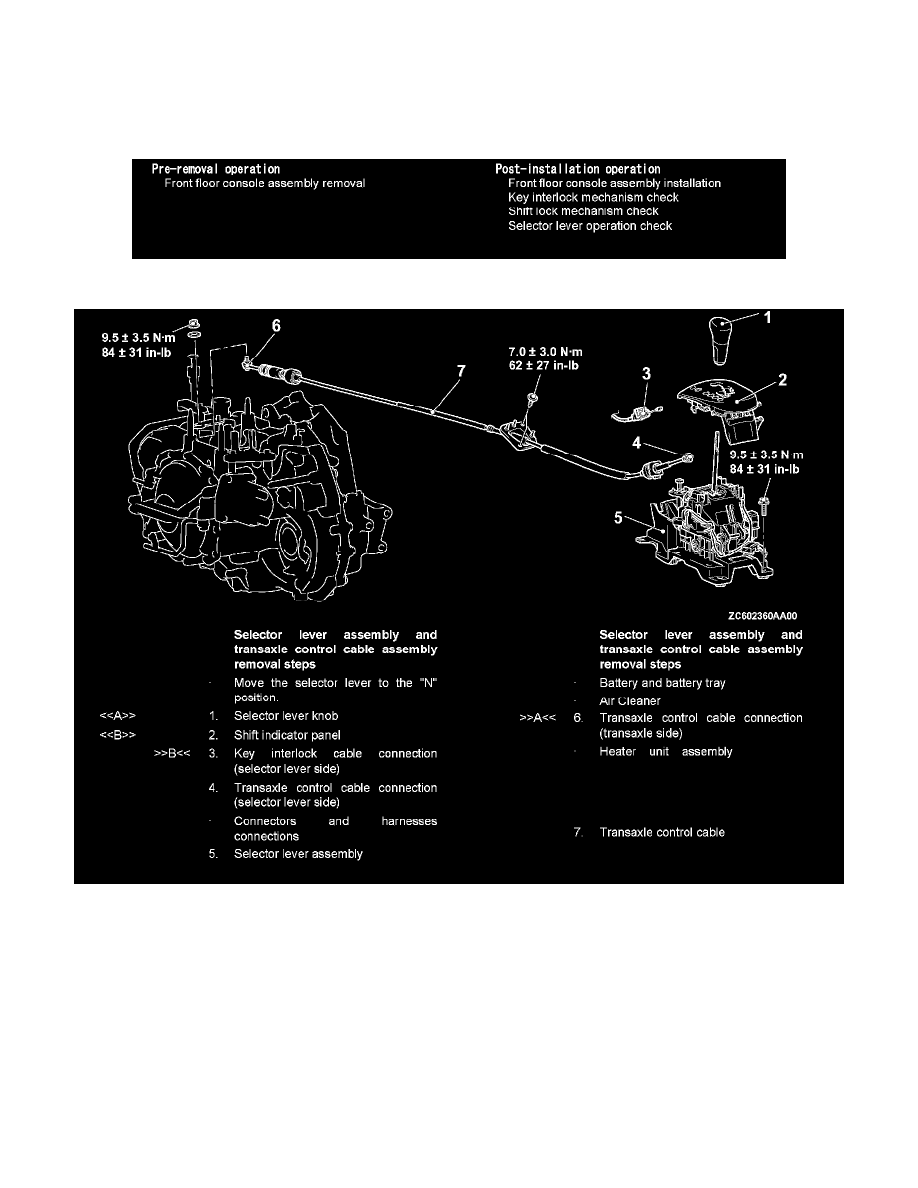

TRANSAXLE CONTROL
REMOVAL AND INSTALLATION
WARNING: When removing and installing the transaxle control cable and shift lock cable unit, be careful not to hit the SRS-ECU.
Pre-removal & Post-installation Operation
Removal Steps 1-7
REMOVAL SERVICE POINTS
<<A>> SELECTOR LEVER KNOB REMOVAL
